  11. Motor, 1/140 HP, OEM Replacement Brand: Fasco Replacement For: 293A
Shop All OEM Replacement Motors
Fasco

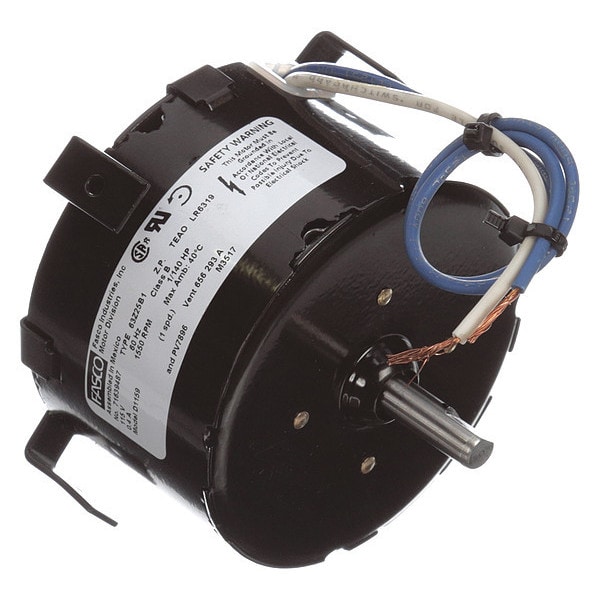

Motor, 1/140 HP, OEM Replacement Brand: Fasco Replacement For: 293A

product price: $96.49
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Frame 3.3
  • HP 1/140 HP
  • Motor Application OEM Replacement
  • Motor Design Shaded Pole
  • Motor Enclosure Design Totally Enclosed Air-Over
See all product information

Product Information

Dimensions

Shaft Dia. 5/16"
Shaft Length 1-1/8"
Length Less Shaft 2 5/16 in
Body Dia. 3.3"
Manufacturers Warranty Length 1 yr.
Overall Length 3.52"

Details

Frame 3.3
HP 1/140 HP
Item Motor
Motor Application OEM Replacement
Motor Design Shaded Pole
Motor Enclosure Design Totally Enclosed Air-Over
Motor Mounting Type Lug
Motor Shaft Rotation Counterclockwise Shaft End
Motor Sub Application Condenser Fan Motor
Motor Thermal Protection Impedance
Nameplate RPM 1550 rpm
No. of Speeds 1
Number of Shafts 1
OEM Replacement Brand Fasco
Phase 1
RPM Range 1501-1600
Voltage 115V
Motor Bearings Sleeve
Replacement For 293A
Ins. Class B
Max. Ambient Temp. 40 Degrees C
Duty Air Over
Full Load Amps 0.4A
Capacitor Required No
Standards UL Recognized, CSA Certified
Motor Shaft Design Flat
Hz 60 Hz
Motor Service Factor 1.00
Application Fans and Blowers
Voltage Compatibility 115V AC, 120V AC
Weight 2 lb
Usable @ 200V No
Motor Frame Material Steel
Usable @ 208V No

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/140 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.4 A, 3.3 in Frame, OEM Replacement Brand Fasco, Replacement For 293A, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Lug, Motor Frame Material Steel
