This item is Discontinued.

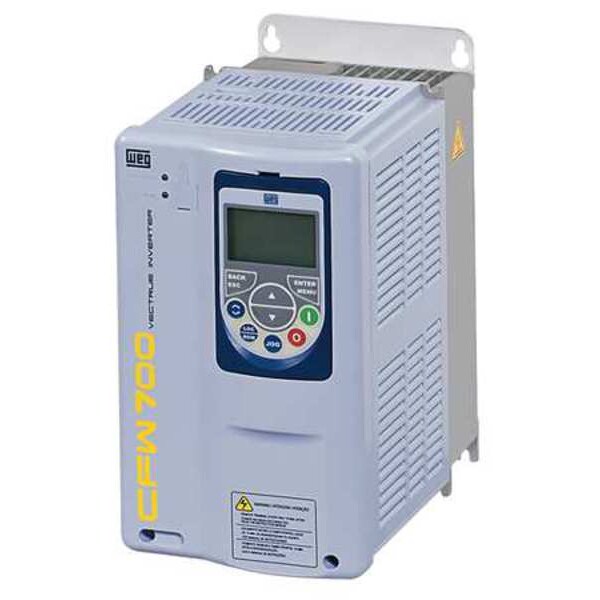

Weg Variable Frequency Drive, 10 HP, 200-230V CFW700B33P5T2DBN1

Variable Frequency Drive, 10 HP, 200-230V (Discontinued)

  • Mfr # CFW700B33P5T2DBN1
  • Zoro # G4071094
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CFW700B33P5T2DBN1
Zoro #
G4071094
UPC #
-
Country of Origin
Brazil

Dimensions

Depth
8.94 in
Width
7.45 in
Height
13.82 in

Details

Digital Readout
Yes
Output Voltage
240V AC
Input Voltage
240V AC
Item
Variable Frequency Drive
Input Frequency
50/60 Hz
Max. HP
10
Torque @ 1 Hz
100%
Adjustable Acceleration Time
0 to 999 sec
Accepts Input Control Signal
Yes
Max. Output Amps
33.5
Input Phase AC
3
Displays
LCD
With Line Contactor / No Line Contactor
No Line Contactor
Output Frequency Range
0 to 300 Hz
Output Phase AC
3
Control Type
Keypad/Remote
Start/Stop Control
Programmable
Starting Torque
100%
Display Type
LCD
For Use With
3-Phase Induction Motor
Dynamic Braking
Yes
Standards
UL, cUL, CE
With Bypass / No Bypass
No Bypass
Adjustable Deceleration Time
0 to 999 sec
Enclosure
NEMA 1
Control Method
Linear and Adjustable V/Hz, Voltage Vector, Sensor less Vector, and Closed Loop Vector
Key Pad Lockout
Yes
Protection
Overcurrent/Short Circuit, Under/Overvoltage, Phase Loss, VFD Overload, Motor Overload, Braking Resistor Overload, IGBTs Overload, Phase-to Ground Short Circuit at the Output, Motor Over speed

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC 3, Input Frequency 50/60 Hz, Output Voltage 240V AC, Output Phase AC 3, Output Frequency Range 0 to 300 Hz
