This item is Discontinued.

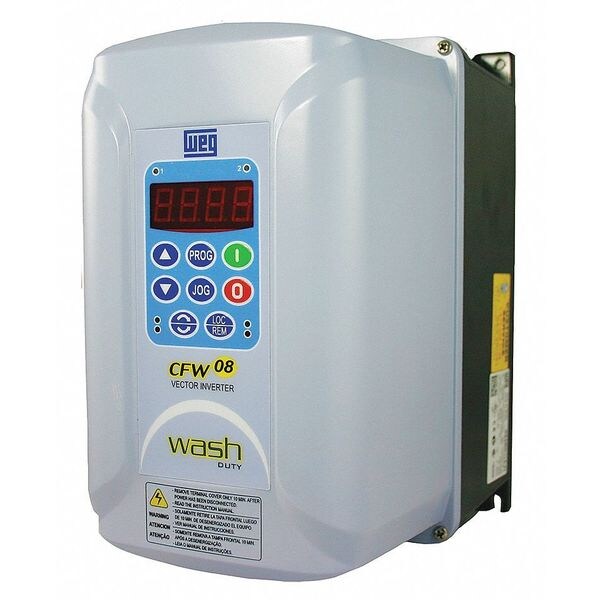

Weg Variable Frequency Drive, 10 HP, 460VAC CFW080160TGN4A1Z

Variable Frequency Drive, 10 HP, 460VAC (Discontinued)

  • Mfr # CFW080160TGN4A1Z
  • Zoro # G7534956
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CFW080160TGN4A1Z
Zoro #
G7534956
UPC #
-
Country of Origin
Brazil

Dimensions

Height
13.4 in
Depth
8.5 in
Width
8.5 in
Overall Depth
8 1/2 in
Overall Height
13 3/8 in
Overall Width
8 1/2 in

Details

Control Method
Keypad, Remote
Starting Torque
150%
Displays
LED Touch Screen
Input Phase AC
Three
Input Voltage
480V AC
With Line Contactor / No Line Contactor
No Line Contactor
Max. Output Amps
16 A
Enclosure
Totally Enclosed
Control Type
Keypad, Remote
For Use With
3-Phase Squirrel Cage Induction Motor
Protection
DC Bus Over and Under Voltage and External Fault, Drive Over Temperature, Motor Overload, Output Phase-to-Phase and Phase-to-Ground Short Circuit, Over Current
Input Frequency
50/60 Hz
With Bypass / No Bypass
No Bypass
Max. HP
10 hp
Output Frequency Range
0 to 300 Hz
Item
Variable Frequency Drive
Adjustable Acceleration Time
0 to 999 sec
Output Phase AC
Three
Dynamic Braking
Yes
Digital Readout
Yes
Adjustable Deceleration Time
0 to 999 sec
Key Pad Lockout
Enclosure Padlock
Output Voltage
480V AC
Accepts Input Control Signal
Yes
Standards
UL, cUL, CE
Display Type
LED
Start/Stop Control
Programmable
Input Voltage Range
200V AC to 480V AC
Maximum Output Power
10 hp
Application
Centrifugal Pumps, Conveyor Belts, Cutting and Welding Machines, Dryers/Rotary Ovens, Extruders, Fans/Exhausters, Granulators/Pelletizers, Multimotors and Multipumps, Process Dosing Pumps, Roller Tables, Rotary Filters, Stirrers/Mixers, Winding Machines/Uncoiling Machines
Enclosure Rating
NEMA 4X
Series
CFW-08
Maximum Output Current
16 A
Output Type
Digital

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 10 hp, Maximum Output Current 16 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 300 Hz, Enclosure Rating NEMA 4X
