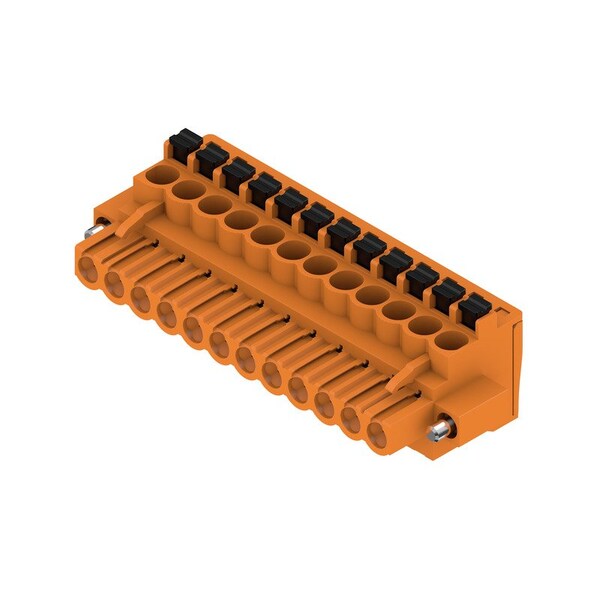

Clamping range, min.
0.13 mm²
Wire connection cross section AWG, min.
AWG 26
Tightening torque for screw flange, max.
0.2 Nm
Colour of operational elements
black
Colour chart (similar)
RAL 2000
Type of connection
Field connection
Rated current (Use group B / CSA)
10 A
Short-time withstand current resistance
3 x 1s with 120 A
Storage temperature, min.
-25 °C
Temperature range, installation, max.
100 °C
Rated current, min. number of poles (Tu=20°C)
24 A
Wire connection cross section AWG, max.
AWG 12
Clamping range, max.
3.31 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.25 mm²
UL 94 flammability rating
V-0
Flexible, min. H05(07) V-K
0.2 mm²
Wire cross-section, AWG, min.
AWG 12, AWG 26
tested acc. to standard
IEC 60664-1, IEC 61984
Operating temperature, min.
-50 °C
Rated voltage (Use group B / UL 1059)
300 V
Operating temperature, max.
100 °C
Touch-safe protection acc. to DIN VDE 0470
IP 20
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Layer structure of plug contact
4-8µm Sn hot-dip tinned
Max. relative humidity during storage
80 %
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated current, max. number of poles (Tu=20°C)
19 A
Screwdriver blade
0.6 x 3.5
Plug gauge in accordance with EN 60999 a x b; ø
2.8 mm x 2.0 mm
Conductor outlet direction
90°
Pitch in inches (P)
0.2 inch
Screwdriver blade standard
DIN 5264
Temperature range, installation, min.
-30 °C
Flexible, max. H05(07) V-K
2.5 mm²
Rated current, min. number of poles (Tu=40°C)
21 A
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
w. wire end ferrule, DIN 46228 pt 1, max.
2.5 mm²
Rated current, max. number of poles (Tu=40°C)
16.5 A
Max. clamping range
3.31 mm²
Wire cross-section, AWG, max.
AWG 12, AWG 26
Rated current (Use group D / UL 1059)
10 A
Rated voltage (Use group D / CSA)
300 V
Certificate No. (cURus)
E60693
Storage temperature, max.
55 °C
Insulating material group
IIIa
Material of operational elements
PBT
Rated voltage for surge voltage class / pollution degree III/2
320 V
Certificate No. (CSA)
200039-1121690
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
w. plastic collar ferrule, DIN 46228 pt 4, max.
2.5 mm²
Rated cross-section
2.5 mm²
Solid, max. H05(07) V-U
2.5 mm²
Solid, min. H05(07) V-U
0.2 mm²
Plugging force/pole, max.
7 N
UL File Number Search
E60693
Rated voltage for surge voltage class / pollution degree II/2
400 V
Approvals
CSA, cURus, EAC
Rated current (Use group B / UL 1059)
18.5 A
Wire connection method
PUSH IN, Tension-clamp connection
Insulation strength
≥108 Ω
w. wire end ferrule, DIN 46228 pt 1, min.
0.25 mm²
Rated current (Use group D / CSA)
10 A
Rated voltage (Use group D / UL 1059)
300 V
Comparative Tracking Index (CTI)
≥200
Pulling force/pole, max.
5.5 N
Volume resistance
4.50 mΩ
Rated voltage (Use group B / CSA)
300 V
