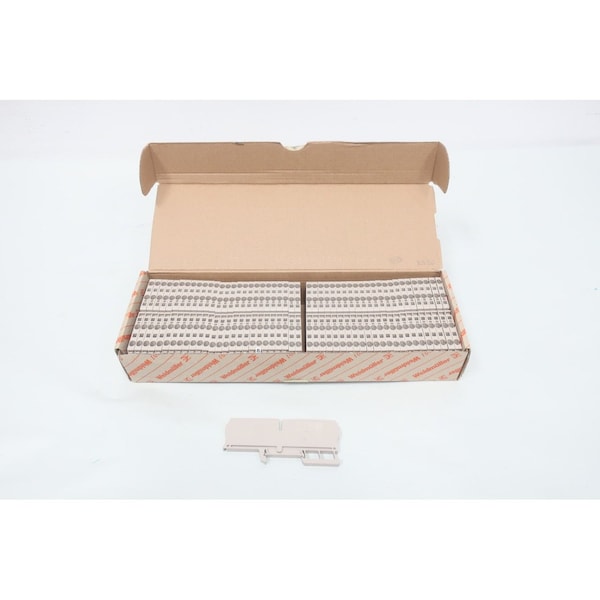

Weidmuller Box of 50 Terminal and Contact Block 7904290000 - main

Box of 50 Terminal and Contact Block

  • Mfr # 7904290000

  • Zoro # G305303926

product price: $127.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
clip-on
Connection Type
Tension Clamp
Current
41 A
Maximum Voltage
800 V
For Minimum Wire Size
AWG 26
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7904290000
Zoro #
G305303926
UPC #
-
Country of Origin
Unknown

Dimensions

For Minimum Wire Size
AWG 26
For Maximum Wire Size
AWG 10
Overall Width
0.24 inch
Current size C (CSA)
35 A
Height (inches)
4.114 inch
Stripping length
12 mm
Blade Size
0.6 x 3.5 mm
Overall Depth
1.693 inch

Details

Mounting Type
clip-on
Connection Type
Tension Clamp
Current
41 A
Maximum Voltage
800 V
Standards
IEC 60947-7-1, UL E60693
Material
Wemid
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, solid core, min.
0.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Approvals
CE, CSA, CURUSEX, DEMKOATEX, EAC, IECEXULD, KEMAATEX, KEMAKEUR, LLOYDSREG, RINA, UR
Rated cross-section
4 mm²
Number of similar terminals
1
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Pollution severity
3
Wire connection cross section, finely stranded, max.
6 mm²
Rated current
32 A
Storage temperature, max.
40 °C
Wire connection cross-section, finely stranded, min.
0.5 mm²
Version
Tension-clamp connection, for plug-in cross-connector, One end without connector
Operating Temperature Range
For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Twin wire-end ferrules, min.
0.5 mm²
Storage temperature, min.
10 °C
Wire connection cross-section, solid core, max.
6 mm²
Connection cross-section, stranded, min.
0.5 mm²
Wire cross section max. (IECEX)
6 mm²
Volume resistance according to IEC 60947-7-x
1 mΩ
Marking EN 60079-7
Ex eb II C Gb
Connection cross-section, stranded, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Open sides
right
Twin wire-end ferrules, max.
1.5 mm²
Number of clamping points per level
4
Number of potentials per tier
1
Rated impulse withstand voltage
8 kV
Clamping range, min.
0.13 mm²
Continuous operating temp., min.
-50 °C
Wire cross section min. (CSA)
26 AWG
Continuous operating temp., max.
120 °C
Gauge to IEC 60947-1
A4
Certificate No. (ATEX)
KEMA00ATEX2107U
Certificate No. (CSA)
200039-1152892
Connection direction
top
Installation advice
Direct mounting
Rail
TS 35
Number of connections
4
Storage temperature
10°C...40°C
Number of Levels
1
Clamping range, max.
6 mm²
UL 94 flammability rating
V-0
Certificate No. (IECEX)
IECEXULD15.0008U
PE connection
No
Power loss in accordance with IEC 60947-7-x
1.02 W
Wire connection cross section AWG, max.
AWG 10
End cover plate required
Yes

Description

Feed-through terminal, Tension-clamp connection, 4 mm2, 800 V, 32 A, dark beige
