Item

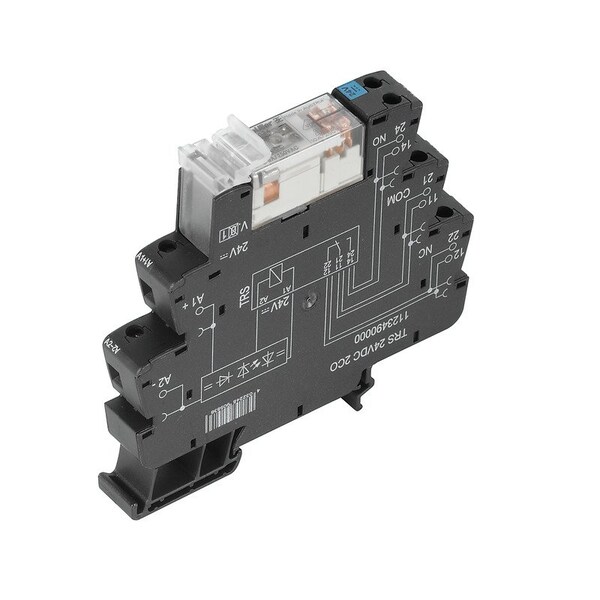

General Purpose Relay
Standards
EN 50178, EN 55011, EN 61000-6-1, 2, 4
Creepage and clearance distance input - output
≥5.5 mm
Surge voltage category
III
Wire connection method
Screw connection
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Wire connection cross section, finely stranded, two clampable wires, min.
0.5 mm²
Max. switching voltage, AC
250 V
Min. switching power
1 mA @ 1 V
Storage temperature, max.
85 °C
Protective circuit
Free-wheeling diode, Reverse polarity protection
Pollution severity level
2
Contact type
2 CO contact (AgNi 5µm Au)
UL File Number Search
E141197
Connection cross-section AWG, min.
AWG 26
Wire cross-section, solid, max.
2.5 mm²
Clamping range, max.
2.5 mm²
Rated control voltage
12 V DC± 20 %
Impulse withstand voltage
6 kV (1.2/50µs)
Max. switching voltage, DC
250 V
Operating Temperature
-40°C...60°C
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
2.5 mm²
Coil voltage of the replacement relay deviating from the rated control voltage
No
Clamping range, min.
0.14 mm²
Ambient temperature (operational), max.
60 °C
Tightening torque, max.
0.4 Nm
Pull-in/drop-out voltage, typ.
9 V / 2 V DC
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.25 mm²
Rated switching voltage
250 V AC
Wire connection cross section, finely stranded, max.
2.5 mm²
Storage temperature, min.
-40 °C
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Gauge to IEC 60947-1
A1, B1
AC switching capacity (resistive), max.
2000 VA
Wire connection cross section AWG, min.
AWG 26
Twin wire-end ferrules, max.
1 mm²
Mechanical switch position indicator
No
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Type of conductor
rigid copper conductor, flexible copper conductor
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.25 mm²
Operating temperature, min.
-40 °C
Wire cross-section, finely stranded, two clampable wires, max.
1 mm²
Dielectric strength of open contact
1 kVeff / 1 min
Dielectric strength of neighbouring contacts
2.5 kVeff
Coil voltage of the replacement relay
12 V DC
Max. switching frequency at rated load
0.1 Hz
Connection cross-section AWG, max.
AWG 14
Operating temperature, max.
60 °C
Storage temperature
-40°C...85°C
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Clamping range, rated connection
1.5 mm²
Wire cross-section, solid, min.
0.14 mm²
Wire connection cross-section, finely stranded, min.
0.14 mm²
Certificate no. (cULus)
E141197
Approvals
CE, CULUS, DNV GL, EAC
Mechanical service life
30 x 106 switching cycles
Dielectric strength, Input/Output
1.2 kVeff / 5 s
Humidity
5-95% relative humidity, Tu = 40°C, without condensation
DC switching capacity (resistive), max.
192 W @ 24 V
Twin wire-end ferrules, min.
0.5 mm²
Pull-in/drop-out current, typ.
24 mA / 5 mA DC
Certificate No. (DNVGL)
TAA00001E5
Inrush current
15 A / 4 s
UL 94 flammability rating
V-0
Push-To-Test Method
No Button
