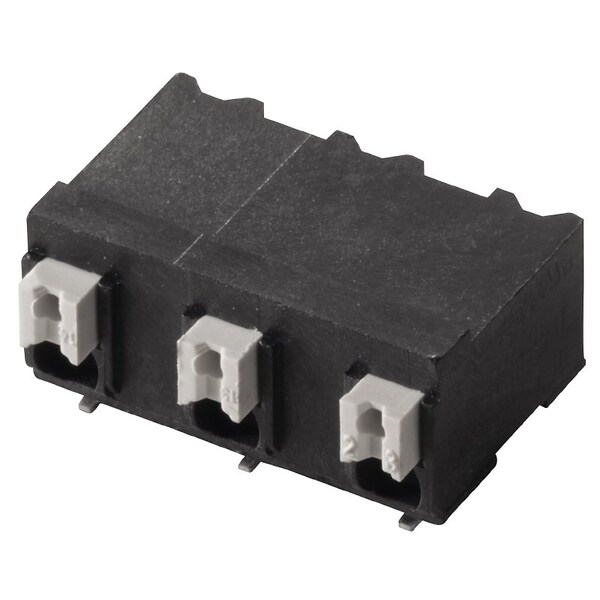

Tape hole separation (E)
1.75 mm
Number of solder pins per pole
2
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Wire connection cross section AWG, max.
AWG 14
Pitch in inches (P)
0.295 inch
Insulating material
LCP GF
Rated current (Use group C / CSA)
10 A
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.25 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.25 mm²
Mounting onto the PCB
SMD solder connection
w. wire end ferrule, DIN 46228 pt 1, max.
1.5 mm²
Certificate No. (cURus)
E60693
Max. clamping range
1.5 mm²
Temperature range, installation, min.
-30 °C
Max. relative humidity during storage
80 %
Short-time withstand current resistance
3 x 1s with 80 A
Storage temperature, min.
-25 °C
Colour of operational elements
white
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Tape pocket separation (F)
26.2 mm
Contact material
Copper alloy
Wire connection method
PUSH IN
Material of operational elements
PPA GF
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Touch-safe protection acc. to DIN VDE 0470
IP 20
Temperature range, installation, max.
120 °C
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Storage temperature, max.
55 °C
Colour chart (similar)
RAL 9011
Rated voltage for surge voltage class / pollution degree II/2
800 V
w. plastic collar ferrule, DIN 46228 pt 4, max.
0.75 mm²
UL 94 flammability rating
V-0
Rated voltage for surge voltage class / pollution degree III/3
500 V
Rated voltage (Use group C / CSA)
150 V
Rated voltage (Use group B / UL 1059)
300 V
Wire cross-section, AWG, min.
AWG 28
Wire connection cross section AWG, min.
AWG 28
Layer structure of solder connection
4-6µm Sn matt
Tape pocket separation (P1)
20 mm
Insulation strength
≥108 Ω
Comparative Tracking Index (CTI)
≥175
Solid, max. H05(07) V-U
1.5 mm²
Rated current (Use group B / UL 1059)
12 A
Rated current (Use group D / UL 1059)
10 A
UL File Number Search
E60693
Operating temperature, min.
-50 °C
Conductor outlet direction
90°
Rated current, max. number of poles (Tu=40°C)
15 A
Rated current, min. number of poles (Tu=40°C)
17.5 A
Rated voltage (Use group C / UL 1059)
150 V
Volume resistance
1.60 mΩ
Wire cross-section, AWG, max.
AWG 14
Insulating material group
IIIa
Solid, min. H05(07) V-U
0.2 mm²
Approvals
CSA, cURus, EAC, VDE
Clamping range, min.
0.13 mm²
Rated current (Use group C / UL 1059)
10 A
Operating temperature, max.
120 °C
Flexible, min. H05(07) V-K
0.2 mm²
Rated current, max. number of poles (Tu=20°C)
17.5 A
Rated current (Use group B / CSA)
10 A
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group D / CSA)
10 A
Clamping range, max.
1.5 mm²
Certificate No. (CSA)
200039-1664286
Rated voltage for surge voltage class / pollution degree III/2
630 V
Flexible, max. H05(07) V-K
1.5 mm²
Rated current, min. number of poles (Tu=20°C)
17.5 A
tested acc. to standard
IEC 60664-1, IEC 61984
Rated voltage (Use group D / UL 1059)
300 V
Rated voltage (Use group B / CSA)
300 V
Surface Resistance
Rs = 109 - 1012 Ω
