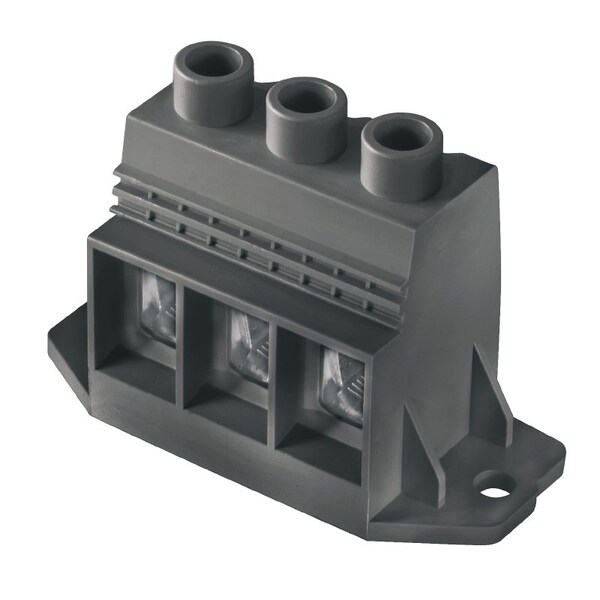

Flexible, min. H05(07) V-K
0.5 mm²
Temperature range, installation, min.
-25 °C
Insulating material group
I
Rated current, min. number of poles (Tu=40°C)
150 A
Stranded, min. H07V-R
6 mm²
Clamping range, max.
50 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
35 mm²
Clamping range, min.
0.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.5 mm²
Solid, min. H05(07) V-U
0.5 mm²
Number of solder pins per pole
4
Rated voltage (Use group D / CSA)
600 V
tested acc. to standard
IEC 60664-1, IEC 61984
Storage temperature, max.
55 °C
Rated impulse voltage for surge voltage class/ pollution degree II/2
8 kV
Rated current (Use group B / CSA)
127 A
Rated voltage for surge voltage class / pollution degree III/2
1,000 V
Layer structure of solder connection
1.5-3µm Ni / 4-6µm Sn matt
UL 94 flammability rating
V-0
Rated current (Use group C / CSA)
127 A
Insulation strength
≥108 Ω
Rated current (Use group D / CSA)
5 A
Mounting onto the PCB
THT solder connection
Rated voltage for surge voltage class / pollution degree III/3
1,000 V
Rated voltage (Use group B / CSA)
600 V
Stranded, max. H07V-R
50 mm²
Tightening torque, min.
2.5 Nm
Wire connection method
Clamping yoke connection
Pitch in inches (P)
0.591 inch
Conductor outlet direction
90°
Tightening torque, max.
4 Nm
Screwdriver blade standard
DIN 5264
w. plastic collar ferrule, DIN 46228 pt 4, max.
35 mm²
Storage temperature, min.
-25 °C
Certificate No. (UR)
E60693
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV
Operating temperature, min.
-50 °C
Screwdriver blade
1.2 x 6.5
Comparative Tracking Index (CTI)
≥600
Temperature range, installation, max.
120 °C
Rated voltage (Use group C / CSA)
600 V
Wire connection cross section AWG, min.
AWG 20
UL File Number Search
E60693
Colour chart (similar)
RAL 9011
w. wire end ferrule, DIN 46228 pt 1, min.
0.5 mm²
Rated voltage for surge voltage class / pollution degree II/2
1,000 V
Operating temperature, max.
120 °C
Max. relative humidity during storage
80 %
Rated current (Use group C / UL 1059)
126 A
Rated voltage (Use group C / UL 1059)
600 V
Rated current, min. number of poles (Tu=20°C)
150 A
Rated current (Use group B / UL 1059)
126 A
Wire cross-section, AWG, min.
AWG 20
Solid, max. H05(07) V-U
16 mm²
Flexible, max. H05(07) V-K
35 mm²
Wire connection cross section AWG, max.
AWG 1
Wire cross-section, AWG, max.
AWG 1
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Max. clamping range
50 mm²
Rated voltage (Use group B / UL 1059)
600 V
Contact material
Copper alloy
Insulating material
Wemid (PA)
