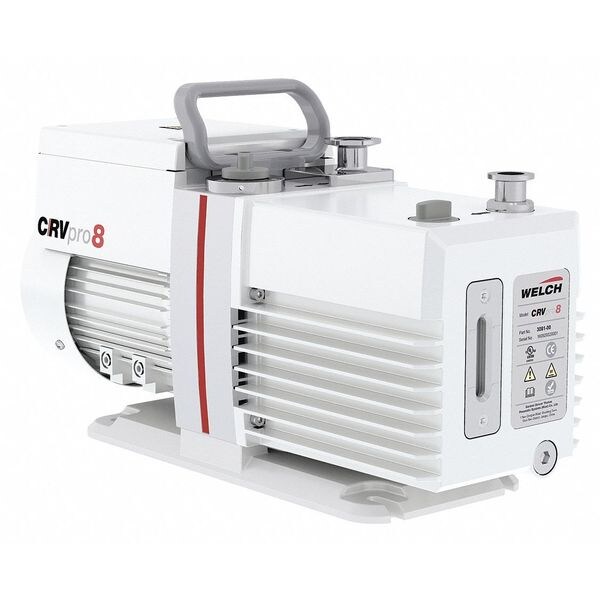

Welch Vacuum Pump, 1/2 hp, 1 Phase, 115V AC 3081-02 - main

Vacuum Pump, 1/2 hp, 1 Phase, 115V AC

  • Mfr # 3081-02

  • Zoro # G3718694

product price: $4,769.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
115V AC
Phase
1
Weight
51.7 lb
Amps AC
9.8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3081-02
Zoro #
G3718694
UPC #
-
Country of Origin
China

Dimensions

Overall Length
6.1 in
Overall Height
18.2 in
Overall Width
9.1 in
Outlet Size
1/4 in NW16
Inlet Size
1/4 in NPT

Details

Item
Vacuum Pump
HP
1/2 hp
Voltage
115V AC
Phase
1
Weight
51.7 lb
Amps AC
9.8
Displacement
5.6 cfm
End Vacuum
1.5 micron
Max. dBA
50
NPT Inlet
NW16
Intake Male SAE Flare
3/4
Ultimate Pressure Torr
1.5 x 10-3 Torr
Hz
60
RPM
1,725 RPM
Motor Type
TEFC
Filter
No
Ballast
Gas
Includes
2L Pump Oil, Cord, Plug
Finish
Powder Coat
Valve Type
Gas Ballast
Oil Capacity
33.8 oz
Application
Commercial, Commercial Chillers, Industrial Refrigeration Service, Moisture From Industrial, Removal of Air
Sound Level
50 dB
Maximum Vacuum
0.0015 torr
Thermal Protection
Manual Reset
Maximum Flow Rate
5.6 cfm
Standards
CE, IP54, UL
Outlet Type
NW16
Bearing Type
Force Fed Lubricated Sliding Bearings
Inlet Type
NPT
Minimum Operating Temperature
10 Degrees C
Lead-Free
No
Frequency
50/60 Hz
Maximum Operating Temperature
40 Degrees C
Maximum Operating Pressure
0 psi
Current Rating
9.8 A
Fluid Compatibility
Oil
Maximum Discharge Pressure
0 mbar
Maximum Speed
1,440 RPM, 1,720 RPM
Maximum Viscosity
305 SUS
Output Power
0.5 hp
Runs Dry
No

Description

Vacuum Pump, Output Power 0.5 hp, Phase Single, Voltage 115V AC, Maximum Flow Rate 5.6 cfm, Maximum Vacuum 0.0015 torr, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NW16, Application Commercial, Commercial Chillers, Industrial Refrigeration Service, Moisture From Industrial, Removal of Air, Maximum Discharge Pressure 0 mbar, Maximum Operating Pressure 0 psi
