  9. Vacuum Pump, 1/2 HP, 5.6 cfm, 115/230V
Shop All Vacuum Pumps
Welch

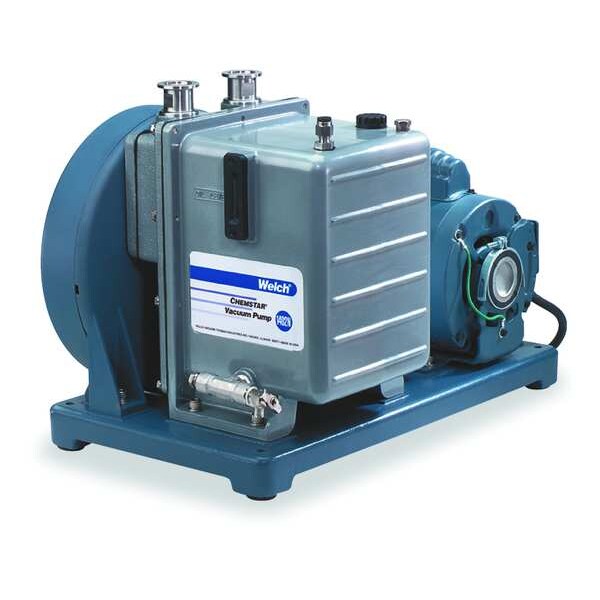

Vacuum Pump, 1/2 HP, 5.6 cfm, 115/230V

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Item: Vacuum Pump
  • HP: 1/2 hp
  • Voltage: 115/230
  • Phase: 1
  • Amps AC: 8.6/4.3
  • Weight: 112 lb
  • Displacement: 5.6 cfm
  • NPT Inlet: 1 in
See full product details
$5,809.26
Item requires special delivery charges. A $50.00 per item surcharge will be applied.
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Welch #1402N-01 Specifications

  • Item: Vacuum Pump
  • HP: 1/2 hp
  • Voltage: 115/230
  • Phase: 1
  • Amps AC: 8.6/4.3
  • Weight: 112 lb
  • Displacement: 5.6 cfm
  • NPT Inlet: 1 in
  • Overall Length: 19 5/16 in
  • Ultimate Pressure Torr: 1 x 10-4
  • Ballast: Gas
  • Includes: Oil
  • Oil Capacity: 80 oz
  • Motor Type: TEFC Continuous Duty
  • Overall Width: 14 1/8 in
  • Valve Type: Gas Ballast
  • RPM: 525 RPM
  • Hz: 60
  • Intake Male SAE Flare: ISO - NW 25
  • Tube Inside Dia.: 13/16 in
  • Overall Height: 15 7/16 in
  • Application: For Pumping Corrosive Gases
  • Lead-Free: No
  • Maximum Discharge Pressure: 0 mbar
  • Outlet Gender: (F)
  • Vane Material: Cast Iron
  • Enclosure Type: Totally Enclosed
  • Maximum Speed: 525 RPM
  • Maximum Flow Rate: 5.6 cfm
  • Fluid Compatibility: Oil
  • Maximum Vacuum: 0.0001 torr
  • Pump Type: Rotary Vane
  • Free Air Displacement: 5.6 cfm
  • Standards: ISO - NW 25
  • Inlet Size: 13/16 in (F)NPT
  • Inlet Gender: (F)
  • Current Rating: 4.3 A, 8.6 A
  • Outlet Hose/Tube ID: 13/16 in
  • Maximum Operating Pressure: 0 psi
  • Inlet Type: NPT
  • Output Power: 0.5 hp
  • Runs Dry: No
  • Duty Cycle: Continuous
  • Frequency: 50/60 Hz
  • Outlet Gender (Broad): (F)
  • Compressor Oil Capacity: 80 oz
  • Inlet Gender (Broad): (F)
  • Inlet Size (Combined): 13/16 in (F)NPT
  • Max Operating Pressure: 0 psi
  • Outlet Size (Combined): 13/16 in (F)
  • Phase (Broad): 1
  • Country of Origin (subject to change): United States

Description

Vacuum Pump, Output Power 0.5 hp, Phase Single, Voltage 115/230V AC, Maximum Flow Rate 5.6 cfm, Maximum Vacuum 0.0001 torr, Inlet Size 13/16 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 13/16 in, Outlet Gender Female, Application Pumping Corrosive Gases, Maximum Discharge Pressure 0 mbar, Maximum Operating Pressure 0 psi
