Shop WERMA

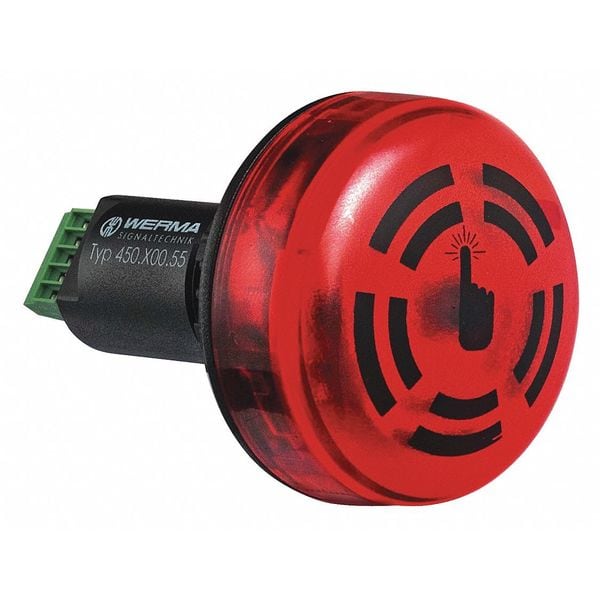

Buzzer, Buzzer, Continuous/Pulse, 24V DC, 80 dB, Polycarbonate, Black, Surface, Wall Mount

  • Mfr # 45010055

  • Zoro # G6039999

product price:
$
184.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polycarbonate
Mounting
Surface, Wall
Color
Black
Audible Alarm Type
Buzzer
Standards
CE, cULus Listed, RoHS, UKCA, UL Listed, WEEE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
45010055
Zoro #
G6039999
UPC #
-
Country of Origin
Germany

Dimensions

Diameter
1.9688 in
Width
1.9688 in
Height
2.9063 in
Depth
2.2031 in
Overall Depth
3 1/16 in
Overall Width
1 31/32 in
Overall Diameter
1 31/32 in
Overall Length
3 1/16 in
Wire Rope Length
3 1/16 in
Length
3 1/16 in

Details

Item
Buzzer
Housing Material
Polycarbonate
Mounting
Surface, Wall
Color
Black
Audible Alarm Type
Buzzer
Voltage
24V DC
Standards
CE, cULus Listed, RoHS, UKCA, UL Listed, WEEE
Indoor/Outdoor
Indoor, Outdoor
Decibels
80 dB
Sound Pattern
Continuous/Pulse
Operating Temp.
-4 Degrees to 122 Degrees F
Visual Indicator Type
Beacon
Housing Color
Black
Vibrating
No
Features
LED Continuous Light with Switchable Continuous Tone for Two-Stage Signaling, Positive and Negative Control Logic, Potential-Free Output for Feedback of Buzzer Switch-Off to the Control System, Switching Off the Acoustic Signal is Made Possible by Pressing Lightly Acknowledgement Function
Power Source
Wire
Lens Color
Red
Lens Material
ABS, Polycarbonate
Product Type
Buzzer and LED
Rating
IP 65
For Location
Indoor, Outdoor
NEMA Rating
NEMA 12
Alarm Volume @ 1 m - Maximum
80 dBA
Control Protocol
Direct Wire
Mounting Style
Surface Mount
Alarm Volume @ 10 ft - Maximum
80 dB
Light Source
LED
IP Rating
IP65
Lifespan
50,000 hr
Lens Shape
Dome
Vibration
No Vibration
Sound Style
Tone
Operating Current
0.080 A
Includes Mounting Hardware
Mounting Hardware Included
Number of Sound Patterns
1
Light Operating Mode
Steady
Operating Temperature - Maximum
50 Degrees C
Sound Continuity
Continuous
Operating Temperature - Minimum
-20 Degrees C
Connection Type
Screw Terminal
Operating Voltage
24V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

Buzzer,24VDC,Black,1-31/32" W,IP65
