  11. Powered-Lift/Manual-Push Platform Lift Trucks, Powered/Manual, 1,000 lb Load Capacity
Shop All Platform Lifts
Wesco

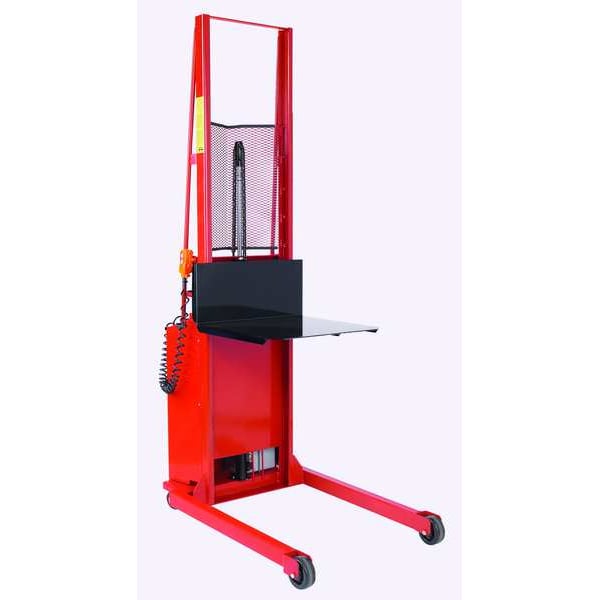

Powered-Lift/Manual-Push Platform Lift Trucks, Powered/Manual, 1,000 lb Load Capacity

product price: $3,190.99
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Overall Height 72 in
  • Overall Length 36 in
  • Overall Width 25 1/2 in
  • Color Red
  • Load Capacity 1,000 lb
See all product information

Product Information

  • Brand Wesco
  • MFR # 261022
  • Zoro # G2306355
  • UPC #
    678655635290
  • Country of Origin United States
  • Category Platform Lifts

Dimensions

Overall Height 72 in
Overall Length 36 in
Overall Width 25 1/2 in
Platform Length 22 in
Front Wheel Dia. 3 1/2 in
Manufacturers Warranty Length 1 yr
Rear Wheel Dia. 5 in
Lifting Height Min. 5 3/4 in
Lifting Height Max. 60 in
Base Legs Inside Dia. 15"
Front Caster Dia. 3 1/2 in
Rear Caster Dia. 5 in
Base Legs Outside Dia. 21"
Platform Width 24 in
Base Inside Width 15 in
Platform LxW 22 in x 24 in
Overall LxWxH 36 in x 25 1/2 in x 72 in
Maximum Lifting Height 60 in
Base Outside Width 21 in
Axle-Mounted Wheel Dia. 5 in
Caster Wheel Dia. 4 in
Lifting Height Range 5 3/4 in to 60 in
Overall Height with Platform Lowered 72 in
Minimum Lifting Height 5 3/4 in
Length 36 in
Depth 72 in

Details

Color Red
Load Capacity 1,000 lb
Item Powered-Lift/Manual-Push Platform Lift Trucks
Lift Mechanism Hydraulic
Invertible Forks No
Frame Material Steel
Lift Control Push Button
Base Legs Inside Dim. 15 in
Lift Base Style Fixed Straddle
Lift Voltage 12V DC
Lift Mobility Electric Lift, Manual Push
Base Legs Outside Dim. 21 in
Includes Wheel Lock
Caster Wheel Type (2) Rigid, (2) Swivel
Load Center 15 in
Powered By Battery
Standards ANSI B56.10
Base Style Fixed
Weight 418 lb
Battery Voltage AC
Features 5th Wheel Steering Option
Frame Finish Powder Coated
Operation Powered/Manual
Wheel Configuration (2) Swivel, (2) Axle-Mounted
Base Material Steel

Description

Powered-Lift/Manual-Push Platform Lift Trucks, Load Capacity 1,000 lb, Minimum Lifting Height 5 3/4 in, Maximum Lifting Height 60 in, Platform Length 22 in, Platform Width 24 in, Lift Control Push Button, Lift Mechanism Hydraulic, Base Style Fixed, Base Inside Width 15 in, Base Outside Width 21 in, Frame Finish Powder Coated, Load Center 15 in, Overall Length 36 in, Overall Width 25 1/2 in, Frame Material Steel, Base Material Steel, Axle-Mounted Wheel Dia. 5 in, Caster Wheel Dia. 4 in

Restrictions

  • Hazardous material
