Shop WESCO

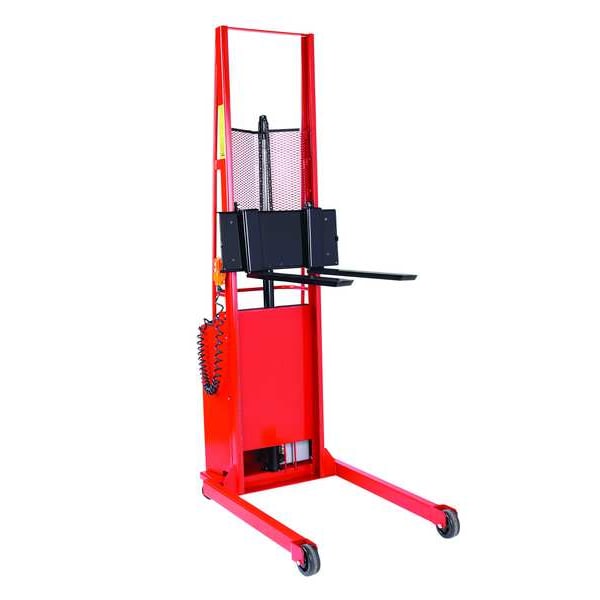

Stacker, 1000 lb, 56 In Lift, 72 In H

  • Mfr # 261031

  • Zoro # G3496005


product price:
$
3,609.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
72 in
Overall Length
48 in
Overall Width
32 1/2 in
Color
Orange
Load Capacity
1,000 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
261031
Zoro #
G3496005
UPC #
678655638451
Country of Origin
United States
Color
Orange
Load Capacity
1,000 lb
Item
Powered-Lift/Manual-Push Straddle Stacker
Assembled
Yes
Lift Mechanism
Hydraulic
Base Legs Outside Dim.
32 in
Invertible Forks
No
Lift Mobility
Electric Lift, Manual Push
Lift Base Style
Fixed Straddle
Lift Speed Loaded
11 sec
Powered By
Battery
Lift Control
Push Button
Lift Voltage
12V DC
Base Legs Inside Dim.
25-1/2 in
Lift Speed Unloaded
7 sec
Frame Material
Steel
Includes
Battery and Charger
Load Center
15 in
Standards
ANSI B56.10
Method of Construction
Welded
Run Time
3 hr
Battery Type
Sealed Lead Acid
Power Connection Type
Plug In
For Surface Type
Concrete
Battery Amp Hours
12 Ah
Base Style
Fixed Straddle
Charger Type
On-Board
Caster Frame Material
Steel
Caster Wheel Type
Swivel
Caster/Wheel Configuration
(2) Swivel, (2) Axle-Mounted
For Pallet Type
Open
Caster Wheel/Tread Material
Phenolic
Caster Mounting Type
Plate
Frame Finish
Powder Coated
Non-Marking Casters/Wheels
Yes
Caster Wheel Bearings
Ball Bearing
Axle-Mounted Wheel Bearings
Ball Bearing
Battery Voltage
110V AC
Fluid Type
AW32
Charger Voltage
120V AC
Axle-Mounted Wheel/Tread Material
Phenolic
Charge Time
1 hr
Handle Material
Steel
Axle-Mounted Wheel Type
Tread on Core
Base Material
Steel
Caster Brake Type
No Caster Brake
Number of Batteries
1
Fork Type
Adjustable Invertible
Operation
Powered/Manual
Non-Marking Axle-Mounted Wheels
Yes
Weight
440 lb
Frame Type
Flat Back
Base Type
Fixed Straddle

Description

Powered/Manual, Base Type Fixed Straddle, Lift Control Push Button, Lift Mechanism Hydraulic, Fork Type Adjustable Invertible, Load Capacity 1,000 lb, Fork Length 30 in, Fork Width 3 in, Width Between Forks 3 in, Width Across Forks 6 in to 24 in, Minimum Lifting Height 1 in, Maximum Lifting Height 52 in, Lifting Height Range 1 in to 4 ft 8 in, Overall Length 48 in, Overall Width 32 1/2 in, Overall Height with Forks Lowered 72 in, Overall Height with Forks Raised 72 in, Base Outside Width 32 in
