Shop WESTGATE

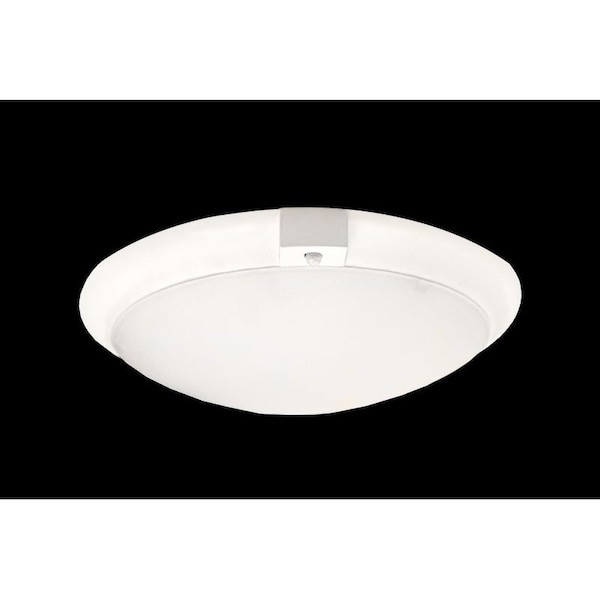

12in PIR DIE-CAST DISK 30W 1800LM 120V CRI80 30/40/50K ES DIM, INCL. RECESS ACCESSORIES, White

  • Mfr # DLS12-MCT-PIR

  • Zoro # G024885024

product price:
$
72.79
/ea

Key Features

Standards
ETL
Width
13.0 in
Fixture Wattage
30W
Height
1.0 in
Weight
1.32 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DLS12-MCT-PIR
Zoro #
G024885024
UPC #
845060057447
Country of Origin
Indonesia
Standards
ETL
Fixture Wattage
30W
Weight
1.32 lb
Voltage
120V
Body Material
Die-cast Aluminum. Powder-Coated
Housing Finish
White
Lens Type
White translucent acrylic lens
Dimmable
TRIAC Dimming
Color Temperature
3000K/4000K/5000K
Lumens
1800LM
Power Factor
0.9
IP Rating
WET Location
BUG Rating
B1-U2-G1
Item
12In PIR Die-Cast Disk 30W 1800Lm 120V Cri80 30/40/50K Es Dim
CRI
>80
Lighting Technology
Unique DOB (Driver On Board)
Rated Life
50,000hr
Fixture Temp. Range
104°F MAX

Description

The Westgate DLS12-MCT-PIR is a 12in PIR die-cast disk 30w 1800lm 120v cri80 30/40/50k es dim. It delivers 1800LM of 3000K/4000K/5000K light at 30W. Operates on 120V input power. Constructed of die-cast aluminum. powder-coated in a white finish. Dimming: TRIAC Dimming. Key specifications: CRI >80, power factor 0.9, operating temperature 104 DegF MAX, 50,000hr rated life, WET Location ingress protection, BUG rating B1-U2-G1. Light source: Unique DOB (Driver On Board). Lens: White translucent acrylic lens. Certifications: ETL.
