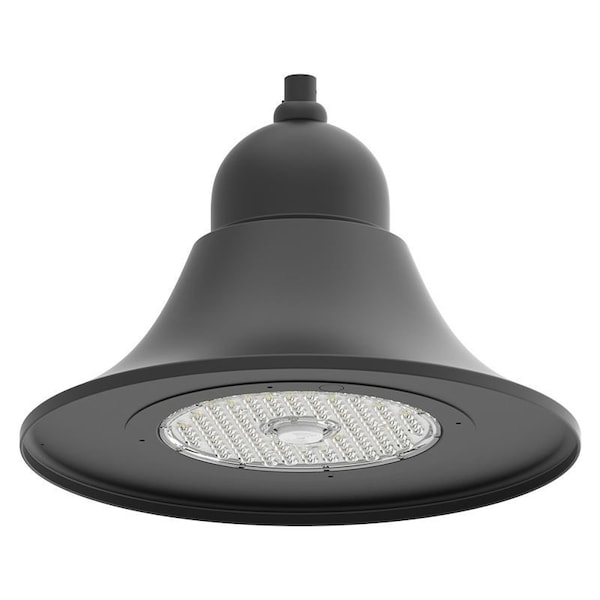

DECORATIVE AREA BELL MODEL B 23in 80/100/150W 30/40/50K 130LM/W 100-347V BLACK, 80W/100W/150W
- Mfr # DAB-B23-80-150W-MCTP-SR
- Zoro # G624885530
product price:Â
$
508.99
/ea
Free Shipping & Returns
Key Features
Standards
UL
Fixture Housing Material
Aluminium
Color Temperature
3000 K, 4000 K, 5000 K
Length
23.62 in
IP Rating
IP65
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DAB-B23-80-150W-MCTP-SR
- Zoro #
- G624885530
- UPC #
- 845060092578
- Country of Origin
- China
Dimensions
- Length
- 23.62 in
- Height
- 16.18 in
- Width
- 23.62 in
Details
- Standards
- UL
- Fixture Housing Material
- Aluminium
- Color Temperature
- 3000 K, 4000 K, 5000 K
- IP Rating
- IP65
- Ambient Temp. Range
- -40 Degrees to 104 Degrees F
- Item
- Decorative Area Bell Model B 23In 80/100/150W 30/40/50K 130Lm/W 100-347V Black
- Lumens
- 130LM/W
- Max. Fixture Wattage
- 80W/100W/150W
- Weight
- 9.61 lb
- Power Factor
- >0.90
- Rated Life
- 50,000hr
- Beam Angle
- 140°
- Lighting Technology
- Lumileds 2835
- Voltage
- 120V to 347V
- Dimmable
- 0-10V
- CRI
- >70
- Housing Finish
- Black
Description
The Westgate DAB-B23-80-150W-MCTP-SR is a decorative area bell model b 23in 80/100/150w 30/40/50k 130lm/w 100-347v black. It delivers 130LM/W of 30K/40K/50K light at 80W/100W/150W. Operates on 120-347V input power. Constructed of aluminium in a black finish. Dimming: 0-10V. Key specifications: CRI >70, power factor >0.90, THD <20%, beam angle 140 Deg, operating temperature -40 DegF to 104 DegF, 50,000hr rated life, IP65 ingress protection. Light source: Lumileds 2835. Certifications: UL.
