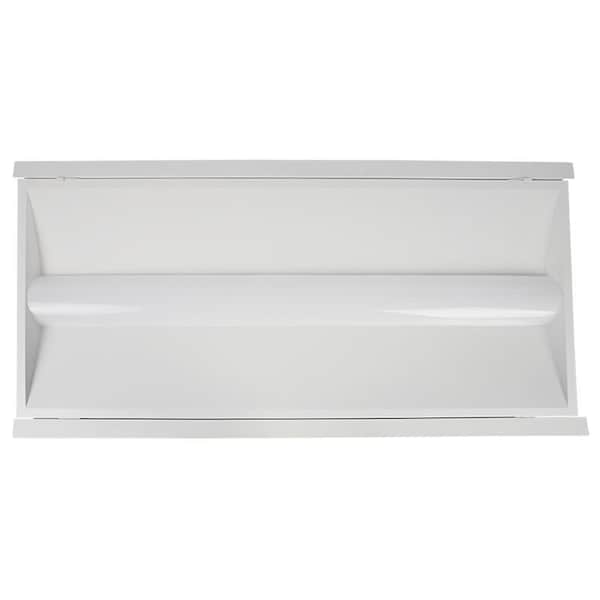

PREMIUM 2X4 RETROFIT TROFFER 125LM/W 45W/38W/30W + 35K/40K/50K 0-10V, 30W/40W/50W, White
Mfr # LRT-HL-2X4-MCTP
Zoro # G624885745
product price:Â
$
106.99
/ea
Free Shipping & Returns
Key Features
Width
21.05 in
Height
2.11 in
Lens Type
Polycarbonate Lens
Fixture Temp. Range
-4°F to 113°F
Dimmable
0~10V Dimming
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LRT-HL-2X4-MCTP
- Zoro #
- G624885745
- UPC #
- 845060047004
- Country of Origin
- Viet Nam
Dimensions
- Width
- 21.05 in
- Height
- 2.11 in
- Length
- 46.75 in
Details
- Lens Type
- Polycarbonate Lens
- Fixture Temp. Range
- -4°F to 113°F
- Dimmable
- 0~10V Dimming
- Max. Fixture Wattage
- 30W/40W/50W
- Power Factor
- >0.90
- Base Material
- Iron+PC
- Color Temperature
- 35K/40K/50K
- Weight
- 7.89 lb
- Housing Finish
- White
- Lighting Technology
- SMD2835 LED
- CRI
- >80
- IP Rating
- IP40
- Lumens
- 125LM/W
- Rated Life
- 50,000hr
- Voltage
- 120-277V
- Beam Angle
- 120°
- Fixture Item
- Premium 2X4 Retrofit Troffer 125Lm/W 45W/38W/30W + 35K/40K/50K 0-10V
- Standards
- UL, DLC
Description
The Westgate LRT-HL-2X4-MCTP is a premium 2x4 retrofit troffer 125lm/w 45w/38w/30w + 35k/40k/50k 0-10v. It delivers 125LM/W of 35K/40K/50K light at 30W/40W/50W. Operates on 120-277V input power. Constructed of iron+pc in a white finish. Dimming: 0-10V Dimming. Key specifications: CRI >80, power factor >0.90, THD <20%, beam angle 120 Deg, operating temperature -4 DegF to 113 DegF, 50,000hr rated life, IP40 ingress protection. Light source: SMD2835 LED. Lens: Polycarbonate Lens. Certifications: UL, DLC.
