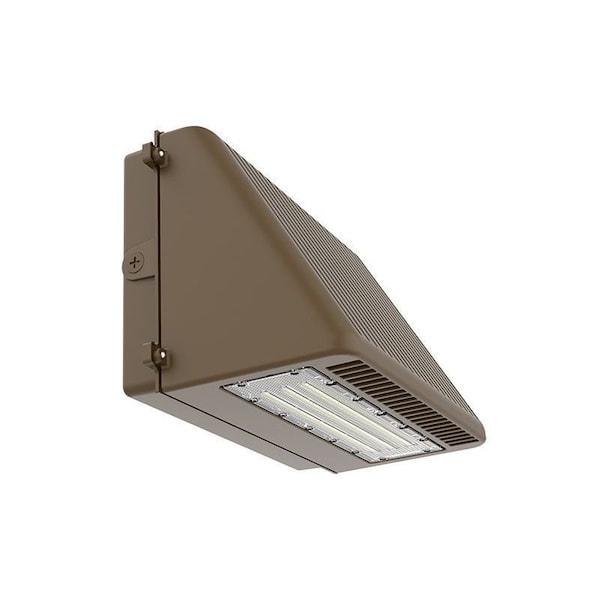

X-GEN PRO FULL CUT-OFF WALL PACK ADJ. 30W-80W ADJ. 30/40/50K 120-277V 0-10V, 30W/40W/60W/80W, BRONZE
- Mfr # LWPX-30-80W-MCTP
- Zoro # G824885750
product price:Â
$
222.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65
Width
9.25 in
Operating Temp. Range
-40 Degrees to 104 Degrees F
Beam Angle
90*120
Lighting Technology
LED
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LWPX-30-80W-MCTP
- Zoro #
- G824885750
- UPC #
- 845060072877
- Country of Origin
- China
- IP Rating
- IP65
- Operating Temp. Range
- -40 Degrees to 104 Degrees F
- Beam Angle
- 90*120
- Lighting Technology
- LED
- Dimmable
- 0~10V Dimmable
- Power Factor
- >0. 9
- Voltage
- 120V to 277V
- BUG Rating
- B3-U2-G2
- Weight
- 6.83 lb
- Color Temperature
- 3000 K, 4000 K, 5000 K, 5700 K
- Lumens
- 125LM/W
- CRI
- >70
- Rated Life
- 50,000hr
- Fixture Wattage
- 30W/40W/60W/80W
- Housing Material
- Aluminum
- Finish
- BRONZE
- Item
- X-Gen Pro Full Cut-Off Wall Pack Adj. 30W-80W Adj. 30/40/50K 120-277V 0-10V
- Standards
- UL, DLC Premium
Dimensions
- Width
- 9.25 in
- Height
- 8.25 in
- Length
- 14.0 in
Description
The Westgate LWPX-30-80W-MCTP is a x-gen pro full cut-off wall pack adj. 30w-80w adj. 30/40/50k 120-277v 0-10v. It delivers 125LM/W of 30K/40K/50K/57K light at 30W/40W/60W/80W. Operates on 120-277V input power. Constructed of aluminum in a bronze finish. Dimming: 0-10V Dimmable. Key specifications: CRI >70, power factor >0. 9, THD <20%, beam angle 90*120, operating temperature -40 DegF-+104 DegF, 50,000hr rated life, IP65 ingress protection, BUG rating B3-U2-G2. Light source: LED. Certifications: UL, DLC Premium.
