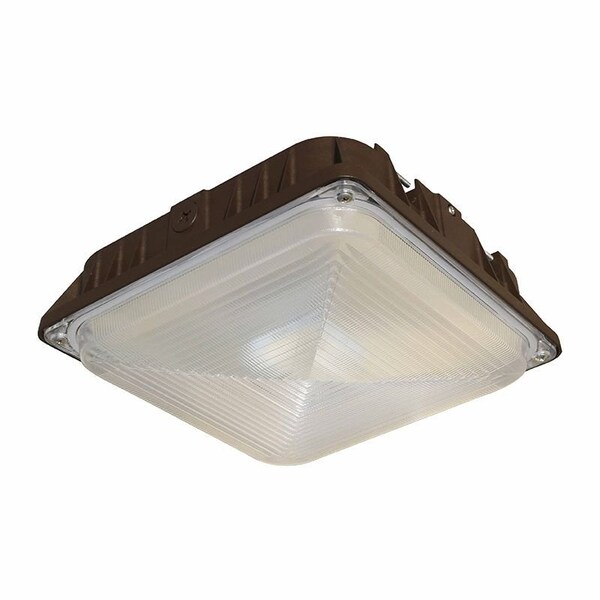

X-GEN SURFACE CANOPY SM HOUSING ADJ. 5W-25W 50K 120-277V 0-10V, 5W/10W/15W/25W, 5000K, BRONZE
- Mfr # CDLX-SM-5-25W-50K
- Zoro # G624886247
product price:Â
$
91.79
/ea
Key Features
Power Factor
>0. 9
Lighting Technology
LED
Voltage
120V to 277V
Rated Life
50,000hr
Max. Fixture Wattage
5W/10W/15W/25W
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CDLX-SM-5-25W-50K
- Zoro #
- G624886247
- UPC #
- 845060088908
- Country of Origin
- China
Dimensions
- Length
- 8.0 in
- Height
- 3.0 in
- Width
- 8.0 in
Details
- Power Factor
- >0. 9
- Lighting Technology
- LED
- Voltage
- 120V to 277V
- Item
- X-Gen Surface Canopy Sm Housing Adj. 5W-25W 50K 120-277V 0-10V
- Rated Life
- 50,000hr
- Max. Fixture Wattage
- 5W/10W/15W/25W
- Ambient Temp. Range
- -40 Degrees to 104 Degrees F
- Lumens
- 120LM/W
- Fixture Housing Material
- Aluminum
- CRI
- >80
- IP Rating
- IP65
- Beam Angle
- 140*140°
- Housing Finish
- BRONZE
- Weight
- 5.64 lb
- Dimmable
- 0~10V Dimmable
- BUG Rating
- B1-U2-G1
- Standards
- UL, DLC Premium
- Color Temperature
- 5000 K
Description
The Westgate CDLX-SM-5-25W-50K is a x-gen surface canopy sm housing adj. 5w-25w 50k 120-277v 0-10v. It delivers 120LM/W of 5000K light at 5W/10W/15W/25W. Operates on 120-277V input power. Constructed of aluminum in a bronze finish. Dimming: 0-10V Dimmable. Key specifications: CRI >80, power factor >0. 9, THD <20%, beam angle 140*140 Deg, operating temperature -40 DegF-+104 DegF, 50,000hr rated life, IP65 ingress protection, BUG rating B1-U2-G1. Light source: LED. Certifications: UL, DLC Premium.
