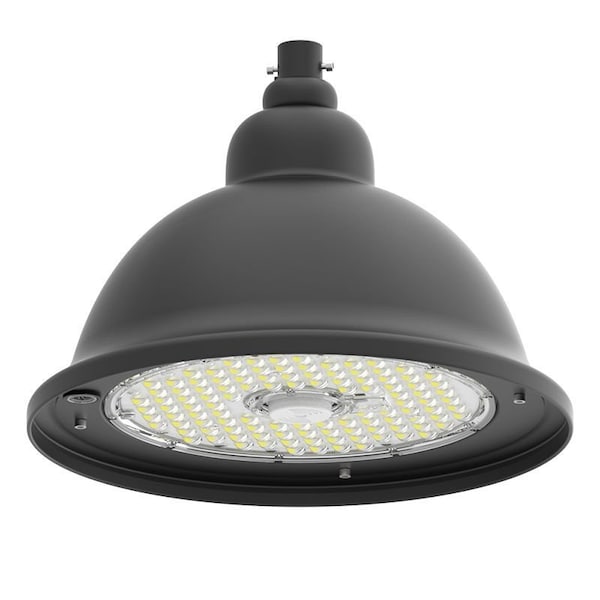

DECORATIVE AREA BELL MODEL A 16in 50/80/100W 30/40/50K 130LM/W 100-347V BLACK, 50W/80W/100W
- Mfr # DAB-A16-50-100W-MCTP-SR
- Zoro # G824884586
product price:Â
$
438.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65
Fixture Housing Material
Aluminium
Lumens
130LM/W
Voltage
120V to 347V
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DAB-A16-50-100W-MCTP-SR
- Zoro #
- G824884586
- UPC #
- 845060092554
- Country of Origin
- China
Dimensions
- Width
- 16.54 in
- Length
- 16.54 in
- Height
- 12.13 in
Details
- Item
- Decorative Area Bell Model A 16In 50/80/100W 30/40/50K 130Lm/W 100-347V Black
- IP Rating
- IP65
- Fixture Housing Material
- Aluminium
- Lumens
- 130LM/W
- Voltage
- 120V to 347V
- Ambient Temp. Range
- -40 Degrees to 104 Degrees F
- Standards
- UL
- Housing Finish
- Black
- Power Factor
- >0.90
- CRI
- >70
- Lighting Technology
- Lumileds 2835
- Max. Fixture Wattage
- 50W/80W/100W
- Beam Angle
- 140°
- Color Temperature
- 3000 K, 4000 K, 5000 K
- Rated Life
- 50,000hr
- Dimmable
- 0-10V
- Weight
- 7.36 lb
Description
The Westgate DAB-A16-50-100W-MCTP-SR is a decorative area bell model a 16in 50/80/100w 30/40/50k 130lm/w 100-347v black. It delivers 130LM/W of 30K/40K/50K light at 50W/80W/100W. Operates on 120-347V input power. Constructed of aluminium in a black finish. Dimming: 0-10V. Key specifications: CRI >70, power factor >0.90, THD <20%, beam angle 140 Deg, operating temperature -40 DegF to 104 DegF, 50,000hr rated life, IP65 ingress protection. Light source: Lumileds 2835. Certifications: UL.
