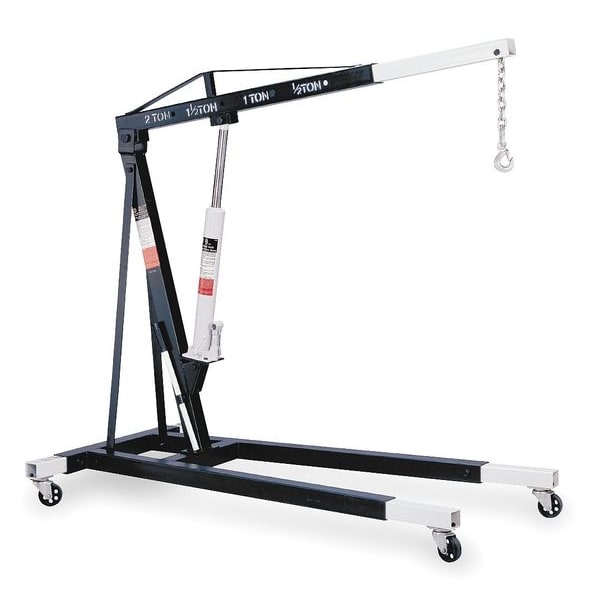

Engine Crane, 58 in, 62-1/2 to 91-1/2, 32-1/4 to 39-3/8

Mfr # 3ZC71
Zoro # G1188381

875.99

Additional $135.00 delivery surcharge applies per item.

Key Features

Height (In.)

58 in

Length (In.)

62-1/2 to 91-1/2

Width (In.)

32-1/4 to 39-3/8

Boom Length (In.)

48-3/4, 57-3/4, 66-3/4, 76-3/4

Min. Hook Height (In.)

5, 9-1/4, 14, 18-3/8

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3ZC71
Zoro #: G1188381
UPC #: 190735825389
Country of Origin: Multiple

Dimensions

Height (In.): 58 in
Length (In.): 62-1/2 to 91-1/2
Width (In.): 32-1/4 to 39-3/8
Boom Length (In.): 48-3/4, 57-3/4, 66-3/4, 76-3/4
Min. Hook Height (In.): 5, 9-1/4, 14, 18-3/8
Max. Hook Height (In.): 69-1/4, 75, 81, 86-1/2
Overall Height: 54 1/2 in
Hook Height (First Position): 18.7 in to 69.25 in
Hook Height (Third Position): 9.25 in to 81 in
Extended Boom Length: 75 3/4 in
Hook Height (Second Position): 14 in to 75 in
Hook Height (Fourth Position): 5 in to 86.5 in
Retracted Boom Length: 48 3/4 in

Details

Item: Engine Crane
Includes: Heavy-Gauge Reinforced Structural Steel Frame with Industrial Steel Bearing Casters
Boom Capacity Position 4 (Lb.): 1,000 lb
Capacity: 1,000, 2,000, 3,000, 4,000
Boom Capacity Position 2 (Lb.): 3,000 lb
Boom Capacity Position 1 (Lb.): 4,000 lb
Boom Capacity Position 3 (Lb.): 2,000 lb
Features: Equipped with Built-In Pressure Overload By-Pass and Metered Release Valve Enabling The Operator to Lower The Boom At A Controlled Rate of Speed
Lift Actuation: Mechanical
Boom Capacity (Fourth Position): 0.5 ton
Boom Capacity (Second Position): 1.5 ton
Boom Capacity (Third Position): 1 ton
Color: Blue
Frame Material: Steel
Number of Boom Positions: 4
Crane Type: Engine Crane
Boom Capacity (First Position): 2 ton

Description

Engine Crane, Frame Material Steel, Number of Boom Positions 4, Boom Capacity (First Position) 2 ton, Boom Capacity (Second Position) 1.5 ton, Boom Capacity (Third Position) 1 ton, Boom Capacity (Fourth Position) 0.5 ton, Color Blue, Crane Type Engine Crane, Extended Boom Length 75 3/4 in, Features Equipped with Built-In Pressure Overload By-Pass and Metered Release Valve Enabling The Operator to Lower The Boom At A Controlled Rate of Speed, Hook Height (First Position) 18.7 in to 69.25 in

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
