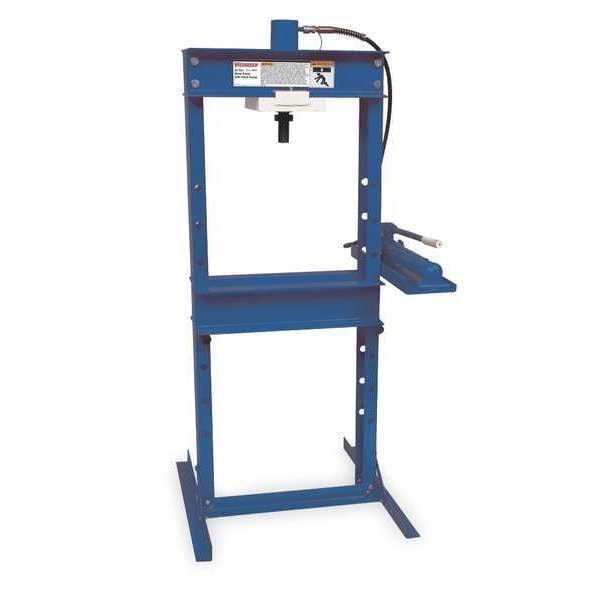

Westward Hydraulic Shop Press, 25 Ton 1MZJ4 - main

Hydraulic Shop Press, 25 Ton

  • Mfr # 1MZJ4

  • Zoro # G1802096

product price: $1,219.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
25 ton
Cylinder Stroke
6 1/2 in
Pump Type
Hand Pump
Base Length
8-1/2 in
Base Width
28 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1MZJ4
Zoro #
G1802096
UPC #
190735754429
Country of Origin
China

Dimensions

Base Length
8-1/2 in
Base Width
28 in
Overall Height
59 in
Working Width
20"
Hose Length
1.88m
Overall Width
28 in
Ram Size
2 1/4 in
Width Between Table Channels
8 5/8 in
Table Length
23-3/4 in
Overall Length
28 in
Overall Depth
28 in
Base Depth
8 1/2 in
Hydraulic Hose Length
1.88 m
Press Bed Depth
8 5/8 in
Press Bed Width
20 in

Details

Frame Capacity
25 ton
Cylinder Stroke
6 1/2 in
Pump Type
Hand Pump
Includes
Cylinder, Hose, Hydraulic Hand Pump
Ram Travel
6"
Item
Hydraulic Press
Pump
F25Y0S
Cylinder Type
Disconnect
Reservoir Capacity
770 mL
Compatible with Brand
Omega
Material - Machining
Steel
Stroke
6-1/2 in
Color
Blue
Max. Ram-to-Table Distance
34-1/4 in
Min. Ram-to-Table Distance
2-1/2 in
Compatible Mfr. Model Number
60253
Distance Between Uprights
20 in
Pressure
10,153 psi
Standards
ASME PALD 2009
Adjustable Bed
Adjustable
Operating Pressure
10,153 psi
Frame Material
Steel
Pump Model Number
F25Y0S
Operation
Manual
Ram-to-Table Distance - Maximum
34 1/4 in
Capacity
25 ton
Ram-to-Table Distance - Minimum
2 1/2 in
Cylinder Model Number
60253

Description

Hydraulic Press, Pump Type Hand Pump, Frame Capacity 25 ton, Cylinder Type Disconnect
