Westward

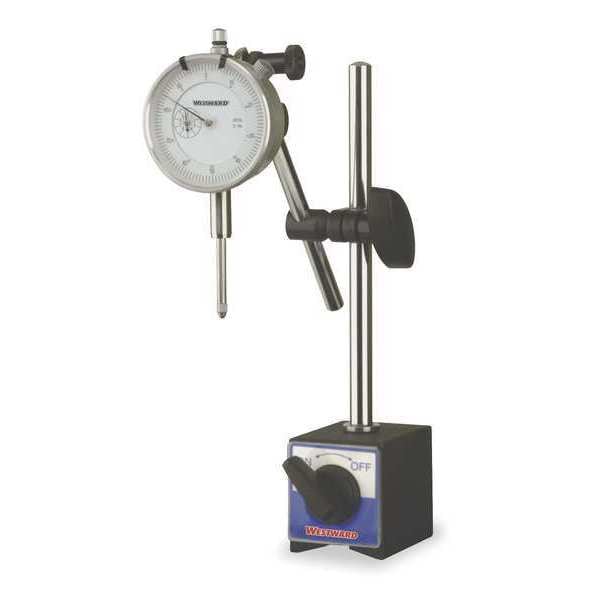

Indicator/Base Set, 4KU81/4KU72

Westward Indicator/Base Set, 4KU81/4KU72 4KU71
Tap to zoom
Hover or click to zoom
$72.67
  • Graduations: 0.001 in
  • Range: 0 in to 1 in
  • Features: V-Base; Fine Adjust; Magnetic Base Helps Keep Unit in Place During Use
See full product details
Orders over $75 ship free.

Total: $72.67

Westward #4KU71 Specifications

  • Graduations: 0.001 in
  • Range: 0 in to 1 in
  • Features: V-Base; Fine Adjust; Magnetic Base Helps Keep Unit in Place During Use
  • Accuracy: +/-0.001 in
  • Includes: 4KU72 Magnetic Base
  • Reading: Continuous
  • Bearing Type: Plain
  • Dial Reading: 0-100
  • Contact Point Dia.: 0.125 in
  • Item: Dial Indicator & Mag Base Set
  • Long Form Calibration Certificate: No
  • Back Type: Lug
  • Dial Color: White
  • Bezel Lock: Yes
  • Range per Revolution: 0.1 in
  • Dial Size: 2.25 in
  • Stem Dia.: 0.185 in
  • Stem Thread Size: #4-58 UNF
  • Maximum Measurement - Inch: 1 in
  • Contact Point Shape: Ball
  • Minimum Measurement - Inch: 0 in
  • Max. Measuring Force: 0.28 N
  • Number of Indicators: 1
  • Case Type: Box
  • Non-Magnetic: No
  • AGD Number: AGD 2
  • Shock Resistant: Yes
  • Operation Type: Back Plunger
  • Includes Case: No
  • Dimension Type: Inch
  • Arm Type: Post and Arm
  • Product Type: Dial Indicator & Mag Base Set
  • Included Indicator Manufacturer Model No: 52-520-110-0
  • Base Type: Magnetic
  • Included Base manufacturer Model No: 52-585-010-0
  • Included Indicator and Base: 52-520-110-0 (52-585-010-0)
  • Country of Origin (subject to change): China

Description

Dial Indicator & Mag Base Set, Range 0 in to 1 in, Graduations 0.0010 in, Accuracy +/-0.001 in, Long Form Calibration Certificate No, AGD Number AGD 2, Back Type Lug-On-Center, Dial Color White, Dial Reading 0-100, Dial Size 2 1/4 in, Dimension Type Inch, Maximum Measurement - Inch 1 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Plunger, Range per Revolution 0.1 in, Reading Continuous, Bearing Type Plain, Bezel Lock No, Case Type Fitted Plastic
