Magnetic Base, Indicator Set, 0.001 In

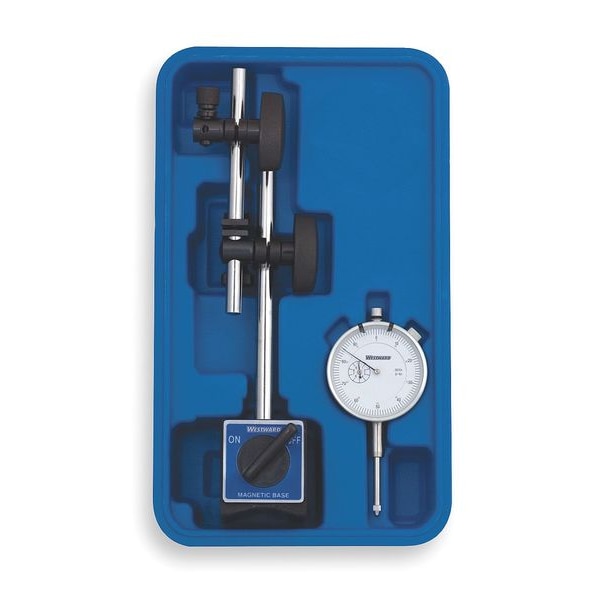

Westward Magnetic Base, Indicator Set, 0.001 In 2YNE1
Tap to zoom
Hover or click to zoom
$115.07
  • Graduations: 0.001 in
  • Range: 0 in to 1 in
  • Features: On/Off Switch; Magnetic Base Helps Keep Unit in Place During Use
See full product details
This item ships free.

Total: $115.07

Westward #2YNE1 Specifications

  • Graduations: 0.001 in
  • Range: 0 in to 1 in
  • Features: On/Off Switch; Magnetic Base Helps Keep Unit in Place During Use
  • Accuracy: +/-0.001 in
  • Includes: AGD Indicator, Base
  • Reading: Continuous
  • Bearing Type: Plain
  • Dial Reading: 0-100
  • Long Form Calibration Certificate: No
  • Contact Point Dia.: 0.125 in
  • Dial Color: White
  • Item: Dial Indicator & Mag Base Set
  • Back Type: Lug
  • Range per Revolution: 0.1 in
  • Bezel Lock: Yes
  • Dial Size: 2.25 in
  • Max. Measuring Force: 0.28 N
  • Maximum Measurement - Inch: 1 in
  • Includes Case: Yes
  • Number of Indicators: 1
  • Dimension Type: Inch
  • Non-Magnetic: No
  • Operation Type: Plunger
  • Minimum Measurement - Inch: 0 in
  • Shock Resistant: Yes
  • Stem Thread Size: #4-48 UNF
  • AGD Number: AGD 2
  • Case Type: Case
  • Contact Point Shape: Ball
  • Stem Dia.: 0.185 in
  • Arm Type: Post and Arm
  • Included Indicator Manufacturer Model No: 52-520-110-0
  • Included Indicator and Base: 52-520-110-0 (52-585-015-0)
  • Included Base manufacturer Model No: 52-585-015-0
  • Base Type: Magnetic
  • Product Type: Dial Indicator & Mag Base Set
  • Country of Origin (subject to change): China

Description

Westward's 2YNE1 Magnetic Base Indicator Set is the essential tool for measuring small distances. It comes with a magnetic base that helps keep the unit in place during use. This dial indicator set features an on/off switch, which can be very useful when needing to stop measurements quickly and easily. The 0-100 reading of this dial indicator has a continuous movement and white color for clear visibility. The 2 1/4" dial size makes it easy to read the graduations from any angle or distance. Accuracy is +/-0.001", which means you can rely on this unit to provide precise measurements every time. With Westward's 2YNE1 Magnetic Base Indicator Set, you will find yourself equipped with all of the tools needed for your project.
