Westward Stub Oil Pump, Air Op, Pump Ratio 5:1 5TCU2 - main

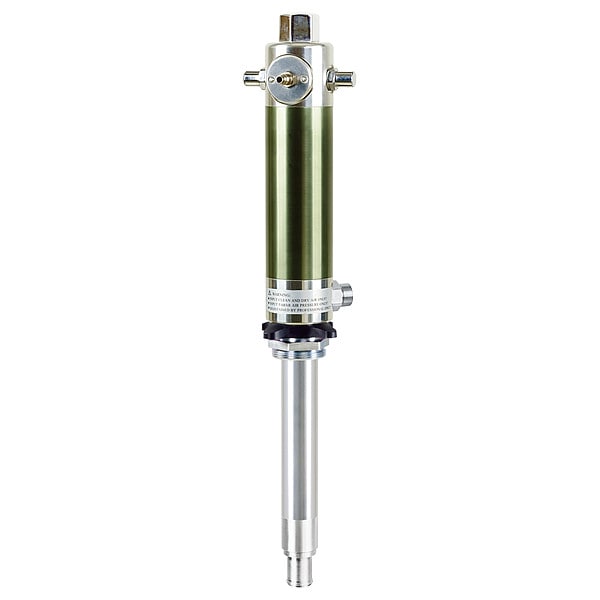

Stub Oil Pump, Air Op, Pump Ratio 5:1

  • Mfr # 5TCU2

  • Zoro # G1595361

product price: $492.99
/ea
Free Shipping & Returns

Key Features

Type
Air Operated
Air Motor Size (In.)
2-1/2
Pump Ratio
5:1
Container Size
2.8 gal.
Consumption @ 100 PSI
6.5 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5TCU2
Zoro #
G1595361
UPC #
190735873052
Country of Origin
China

Dimensions

Air Motor Size (In.)
2-1/2
Container Size
2.8 gal.
Air Inlet Size
1/4 NPT
For Container Size
55 gal, 275 gal

Details

Item
Air Operated Drum Pump
Type
Air Operated
Pump Ratio
5:1
Consumption @ 100 PSI
6.5 cfm
Working Flow Max. (GPM)
6.6
Air Inlet (In.)
1/4 FNPT
Outlet Pressure Max. (PSI)
580
Fluid Outlet Thread (In.)
3/4 MNPT
Min. Air Inlet Pressure
70
Max. Output
6.6 gpm
Pump for Multiple Outlets
Yes
Max. Air Inlet PSI
115
For Use With
Oils Up To SAE 240
Includes Discharge Hose
No
Power Source
Air
Not Recommended Chemicals
Antifreeze (Coolant), Biodiesel, Brake Fluid, DEF, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fertilizers, Fresh Water, Fungicides, Gasoline, Herbicides, Isopropyl (Isopropanol), Kerosene, Lithium Grease, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%), Windshield Washer Fluid
Max. Flow Rate
6.6 gpm
Air Consumption
7 cfm
Compatible Chemicals
Motor Oil
Includes Spout
No
Discharge Connection Type
MNPT
Wetted Materials
Buna-N, Polyurethane, Steel
For Media Type
Motor Oil
Discharge Tube Outlet ID
3/4 in
Min. Air Pressure
70 psi
For Container Type
Drum, Tote
Includes Nozzle
No
Max. Air Pressure
115 psi
Metered
No
Max. Oil Flow
6.6 gpm
Includes Suction Tube
Yes
Grease
NT
Max. Outlet Pressure
580 psi
Gear Lube
NT
Ratio
5:1

Description

Air Operated Drum Pump, Max. Air Pressure 115 psi, Discharge Connection Type MNPT, Air Consumption 7 cfm, Hose Length Not Applicable, Includes Discharge Hose No, Includes Suction Tube Yes, Includes Nozzle No, Includes Spout No
