  13. Test Indicator, 2 1/4 Dia, 1 In

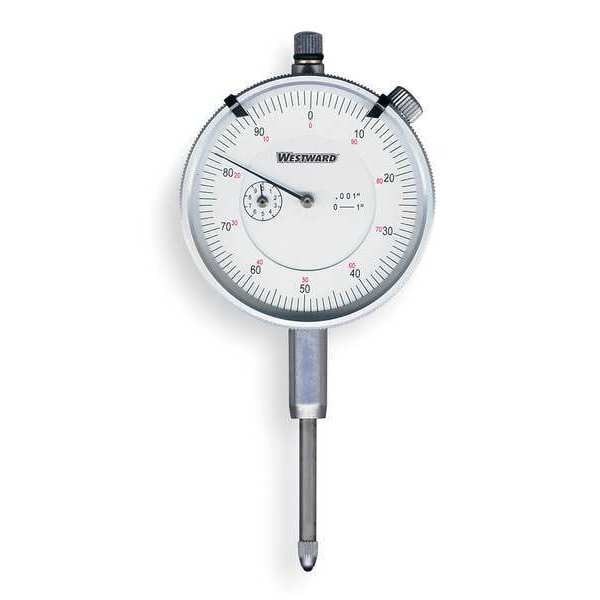

Westward Test Indicator, 2 1/4 Dia, 1 In 4KU81 - main

Test Indicator, 2 1/4 Dia, 1 In

  • Mfr # 4KU81

  • Zoro # G2797444

product price: $45.49
/ea

Key Features

Graduations
0.001 in
Range
0 in to 1 in
Features
Lug Back
Accuracy
0.001 in
Includes
Adjustable Tolerance Limit Markers
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4KU81
Zoro #
G2797444
UPC #
190735850527
Country of Origin
China

Dimensions

Dial Size
2.38 in
Contact Point Dia.
0.12 in
Dimension Type
Inch
Stylus Diameter
0.1 in
Stem Thread Size
#4-48
Stem Dia.
0.375 in
Contact Point Diameter
0.12 in
Stem Diameter
0.375 in

Details

Graduations
0.001 in
Range
0 in to 1 in
Features
Lug Back
Accuracy
0.001 in
Includes
Adjustable Tolerance Limit Markers
Reading
Continuous
Bearing Type
Plain
Series
Indictor
Dial Reading
0-100
Standards
American Gage Design
Item
Dial Indicator - Lug Back
Dial Color
White
Range per Revolution
0.1 in
Long Form Calibration Certificate
No
Bezel Lock
Yes
Back Type
Lug
Case Type
Box
Includes Dovetail Mount Attachments
No
Shock Resistant
Yes
Non-Conductive Tip
No
Contact Point Material
Carbide
Mounting Style
Center Lug Back
Contact Point Shape
Ball
Operation Type
Mechanical
Includes Case
No
Repeatability
+/- 0.2 divisions
Non-Magnetic Tip
No
Number of Indicators
1
Hysteresis
8 micron
Maximum Measurement - Inch
1 in
Product Type
Dial Indicator - Lug Back

Description

This Westward 4KU81 Dial Indicator - Lug Back is a precision tool for measuring the smallest of distances. The indicator has a range of 0 in to 1 in and features a continuous reading dial with 0-100 graduations. This lug back dial indicator has an accuracy of +/- 0.001" and features white numbering on a graduated, clear plastic dial. It also has a lug back type that provides greater stability while taking measurements. With its 2 1/4" diameter, this dial indicator is easy to read from all angles and its simple design makes it highly reliable. You will want to have the Westward 4KU81 Dial Indicator - Lug Back around when you need to take precise measurements at your workplace or home project site.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
