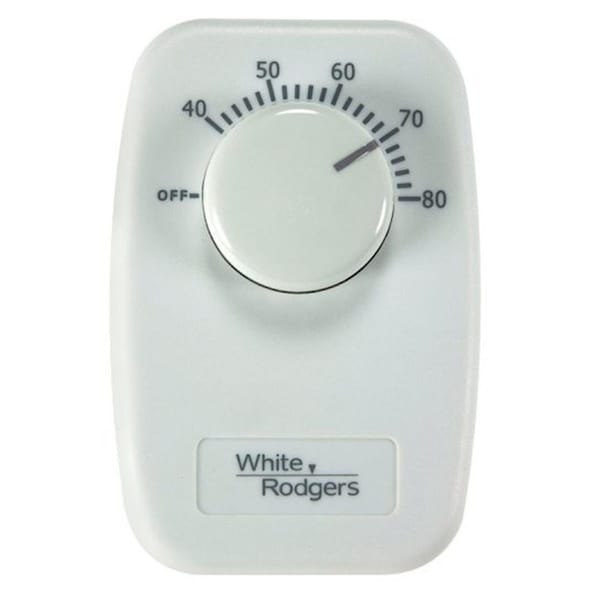

B50 220V Electric Heat Thermostats

Features 4 wire DPST Line voltage: 120/240/277 Designed for use on all types of electrical heating installations such as cable heat, baseboards, wall insert heaters etc. VAC where local codes require that a double line disconnect thermostat be used This thermostat may be set anywhere between 40° and 80°F by simply turning the knob so the indicator on knob points to the desired setting. Knob OFF position temporary shutdown the heating equipment for short periods such as weekend or vacations etc Wall cover platerequired when thermostat will not hide wall imperfections behind old thermostat Two cover mounting screws Three Temperature Limiting Pins Temperature Range: 40° to 80°F Differential: 3.0°F Switch Action: Open on rise Contact Structure: Double Line Disconnect - DPST Specifications Dimension: 8.75in H x 7in W x 2.75in L Weight: 0.6 lbs
