  11. Blue Series 12 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC

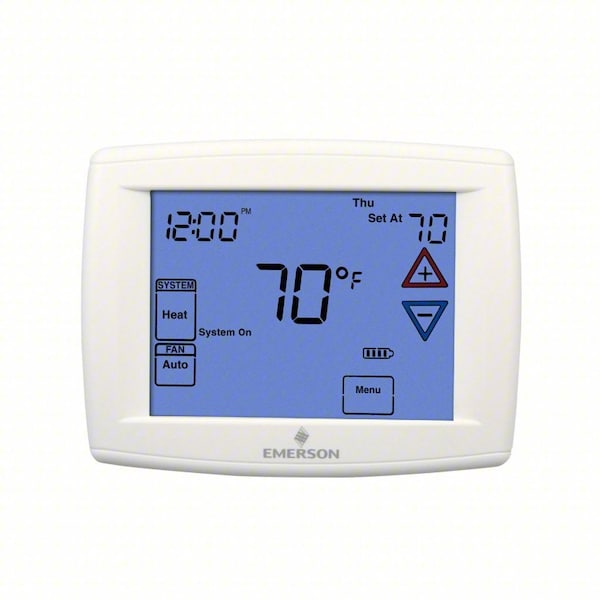

White-Rodgers Blue Series 12 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC 1F95-1291 - main

Blue Series 12 Touchscreen Thermostats, 7, 5-1-1 Programs, 4 H, 2 C, 24VAC

  • Mfr # 1F95-1291

  • Zoro # G0320494

product price: $204.99
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F95-1291
Zoro #
G0320494
UPC #
786710534577
Country of Origin
Viet Nam

Dimensions

Height
4 5/8"
Width
5 15/16"
Display Size
12 sq in
Depth
1 in
Overall Depth
1 13/16 in
Overall Height
4 9/16 in
Digit Size
Easy Read
Overall Width
5 13/16 in

Details

Item
Blue Series 12 Touchscreen Thermostats
Voltage
24VAC
Stages Heat
4
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery/Power Stealing
750mV Compatible
Yes
Programs per Week
7, 5-1-1
Battery Backup
Yes
Filter Indicator
No
Features
Has Dehumidification Control, Audible Feedback, Selectable High/Low Temp Limits, Key Pad Programming, Requires 2AA Batteries
Automatic Changeover
Yes
Temporary Program Override
Yes
Batteries Included
No
WiFi Capability
No
Temperature Limiting
Yes
For Use With
Heat Only, Cool Only, Heating and Cooling, Single Stage Gas, Oil, Electric, Multi-Stage Gas, Oil, Electric, Heat Pump, Millivolt, 3-wire Zone Valve
Dehumidification Control
Yes
Display Color
Blue
Temp. Settings per Day
0, 2, 4
Display Type
Backlit
Programmable Fan
Yes
Temporary Temperature Hold
Yes
Green Environmental Attribute
Thermostat has Programmable Feature to Reduce Energy Consumption
Terminal Designations
RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM
Fan Switching
Auto-On-Program-Circulate
Remote Sensing Capability
Yes
Humidification Control
Yes
Key Pad Lockout
Yes
Low Battery Indicator
Yes
Footnotes
1, 2, 3, 4, 5, 6, 7, 8
Mounting
Horizontal
Includes
Mounting Hardware
Stages
2H/2C Conventional, 4H/2C Heat Pump
Control Type
Touch Screen
Type
Touch Screen Programmable Multi Stage, H/C or HP
Temperature settings per day
0, 2, 4
Maximum Operating Temperature
105 Degrees F
Differential Cool
0.9 Degrees F, 1.7 Degrees F
Millivolt Compatible
Yes
Operating Temperature Range
32 Degrees to 105 Degrees F
Filter Change Reminder
Yes
Battery Type
(2) AA Batteries
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Millivolt
Shape
Rectangle
Sensor Location
Remote
Maximum Control Temperature
99 Degrees F
Fan Settings
Auto-On
Minimum Operating Temperature
32 Degrees F
Temperature Scale
Fahrenheit/Celsius
Number of Heating Stages - Heat Pump System
4
Backlit Type
Touch Activated or Continuous with Common Wire
Temperature Readout
Yes
Changeover Type
Automatic
Backlit Screen
Yes
Mounting Direction/Shape
Horizontal
Application/Stages
Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump
Number of Cooling Stages - Conventional System
2
Smart Connectivity
No Connectivity
Differential Type
Adjustable
Thermostat Type
Low Voltage
Backlit Screen Color
Blue
Includes Positive Off
Yes
Number of Cooling Stages - Heat Pump System
2
Mounting Direction
Horizontal
Housing Color
White
Programming Capability
5-1-1, 7 Day
Number of Heating Stages - Conventional System
2
Application
Heat and Cool
Number of Zones
2
Electrical Connection Type
Hardwired
Minimum Operating Humidity
0 %
System/Fan Settings
Auto-Cool-Emergency Heat-Off/Auto-On
Contact Rating
20 to 30V AC
System Settings
Auto-Cool-Emergency Heat-Off
Frequency
50 Hz, 60 Hz
Temperature Differential
0.6 Degrees F, 1.2 Degrees F
Includes Batteries
Yes
Differential Heat
0.5 Degrees F, 1.9 Degrees F
Operating Humidity Range
0% to 90% RH
Minimum Control Temperature
45 Degrees F
Maximum Operating Humidity
90 %
Temperature Control Range
45 Degrees to 99 Degrees F

Description

Low Voltage Thermostat, Stages Heat 4, Stages Cool 2, Temp. Settings per Day 0, 2, 4, Programs per Week 7, 5-1-1, or Nonprogrammable, Terminal Designations -, +, 6, C, DHM, G, HM, L, O/B, RC, RH, S, W/E, W2, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On-Program-Circulate, Display Size 12 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control Yes
