Shop WHITE-RODGERS

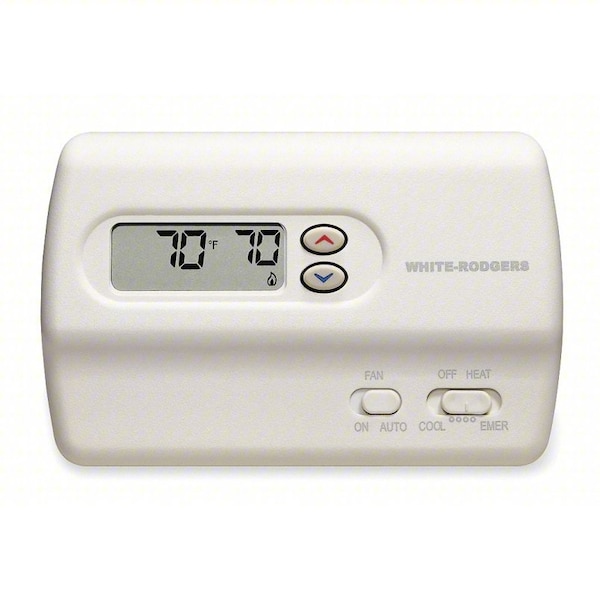

Classic 80 Series Thermostats, 2 H, 1 C, Hardwired, 20/30VAC

  • Mfr # 01F89 211S1

  • Zoro # G2123624

product price:  $60.39
/ea

Key Features

Voltage
20/30VAC
Stages Heat
2
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
01F89 211S1
Zoro #
G2123624
UPC #
786710100819
Country of Origin
China

Dimensions

Height
3 3/4"
Width
6"
Depth
1 1/4 in
Overall Width
6 in
Digit Size
Standard
Overall Height
3 7/8 in
Overall Depth
1 3/16 in

Details

Item
Classic 80 Series Thermostats
Voltage
20/30VAC
Stages Heat
2
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off-Emergency
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired
750mV Compatible
No
Includes
Filter Indicator
Programmable Fan
No
Display
Digital Backlit
Humidification Control
No
Filter Indicator
Yes
Features
Compressor Short Cycle Protection, Batteries not Required, Lighted Display
Fan Switching
Auto-On
Terminal Designations
C, E, G, L, O/B, R, W2, Y
Mounting
Horizontal
Temporary Program Override
No
Temperature Limiting
No
Display Type
Digital
Dehumidification Control
No
Key Pad Lockout
No
Control Type
Slide Switch
Type
Digital Nonprogrammable Multi Stage HP
Stages
2H/1C Heat Pump
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Humidity
90 %
Backlit Type
Key Press or Continuous with Common Wire
Millivolt Compatible
Yes
Application
Heat or Cool
Mounting Direction
Horizontal
System/Fan Settings
Cool-Heat-Off/Auto-On
Number of Cooling Stages - Conventional System
0
Housing Color
White
Programming Capability
Not Programmable
Maximum Operating Temperature
150 Degrees F
Shape
Rectangle
Frequency
50 Hz, 60 Hz
Number of Cooling Stages - Heat Pump System
1
Thermostat Type
Low Voltage
Housing Material
Plastic
Fan Settings
Auto-On
Temperature Differential
0.6 Degrees to 1.5 Degrees F
Number of Heating Stages - Conventional System
0
Minimum Control Temperature
45 Degrees F
Minimum Operating Humidity
0 %
Minimum Operating Temperature
-40 Degrees F
Includes Positive Off
Yes
Temperature Control Range
45 Degrees to 99 Degrees F
Mounting Direction/Shape
Horizontal
Number of Zones
1
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux
Differential Type
Adjustable
Changeover Type
Manual
Filter Change Reminder
Yes
Operating Temperature Range
-40 Degrees to 150 Degrees F
Number of Heating Stages - Heat Pump System
2
Maximum Control Temperature
99 Degrees F
Operating Humidity Range
0% to 90%
Electrical Connection Type
Hardwired
Temperature Sensitivity
+/-1 Degrees F
Amperage
2.5 A
System Settings
Cool-Heat-Off

Description

Low Voltage Thermostat, Heat or Cool, Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Slide Switch, Dehumidification Control No, Differential Type Adjustable, Digit Size Standard, Digital, Dual Transformer Compatible No, Fan Settings Auto-On, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 45 Degrees F, Maximum Control Temperature 99 Degrees F
