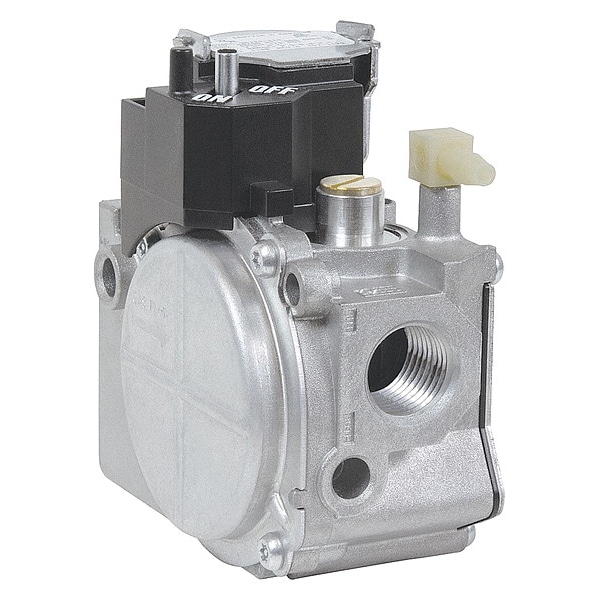

White-Rodgers Gas Valve, NG/LP, Electronic, 24 V, 2.5 to 5.0" WC/ 7.0 to 12.0" WC, Slow Opening, 0.3A 36J24-614 - main

Gas Valve, NG/LP, Electronic, 24 V, 2.5 to 5.0" WC/ 7.0 to 12.0" WC, Slow Opening, 0.3A

  • Mfr # 36J24-614

  • Zoro # G8564735

product price:  $84.36
/ea

Key Features

BtuH Capacity
140,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Electronic
Inlet Size
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
36J24-614
Zoro #
G8564735
UPC #
786710536984
Country of Origin
Mexico

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Port Connection Size
1/2 in
Overall Height
4 1/4 in
Pressure Tap Connection Size
5/16 in
Overall Length
4 11/16 in

Details

BtuH Capacity
140,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Electronic
Reducer Bushing Kit
No
Valve Type
Slow Opening
For Use With
Non-Piloted Intermittent Ignition Systems
Amps AC
0.3A
Ambient Temp. Range
-40 Degrees to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
2.5 to 5.0" WC/ 7.0 to 12.0" WC
Flow Direction
90 Degrees
Max. Inlet Pressure
1/2 psi
Side Taps
No
Standards
CSA
Inlet Pressure Tap
Yes
Pilot Type
Direct Spark Ignition, Hot Surface Ignition
For Media
Liquid Propane, Natural Gas
Electrical Connections
Quick Connect Terminal
Reducer Bushings Included
None
Opening Characteristic
Slow Opening
Includes On/Off Switch
On/Off Switch Included
Heating Capacity - Maximum
140,000 BtuH
Voltage
24V AC
Manufacturer Series
36J
Includes Thermostat
Mechanical Thermostat Not Included
Current
0.3 A
Port Connection Type
NPT
Includes Conversion Kit
Conversion Kit Included
Includes Side Taps
Side Taps Not Included
Installation Orientation
Versatile
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Port Connection Gender
Female
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Valve Design
Single
Sensing Type
Flame Sensor
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Includes Pressure Regulator
Pressure Regulator Included

Description

Gas Valve, Current 0.3 A, Electrical Connections Quick Connect Terminal, Flow Direction 90 Degrees , For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 140,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch On/Off Switch Included, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Pressure Tap Outlet Included
