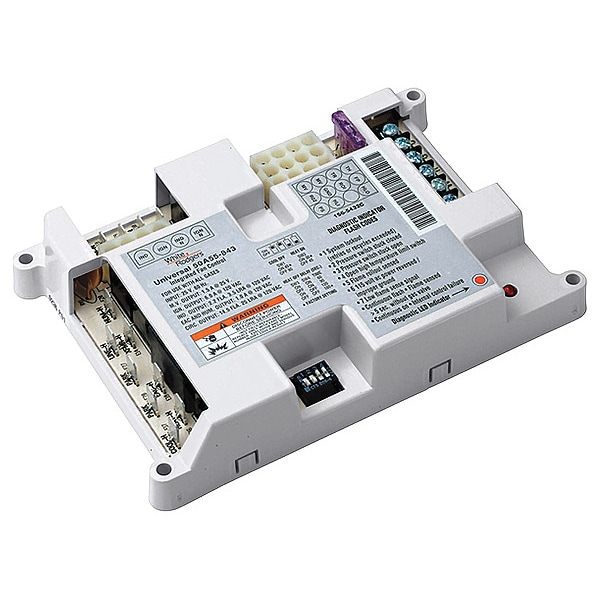

White-Rodgers Integrated Furnace Ctl 50A55 843S1 - main

Integrated Furnace Ctl

  • Mfr # 50A55 843S1

  • Zoro # G3469855

product price: $146.99
/ea
Free Shipping & Returns

Key Features

Electrical Ratings
24V AC
Gas Type
LP/NG
Depth (In.)
30 in
Type
Hot Surface Ignition
Amps AC
0.45 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50A55 843S1
Zoro #
G3469855
UPC #
786710100437
Country of Origin
Mexico

Dimensions

Depth (In.)
30 in
Width (In.)
4 in
Height (In.)
1 1/2 in
Overall Width
4 5/8 in
Overall Height
6 7/8 in
Overall Depth
1 1/4 in

Details

Electrical Ratings
24V AC
Gas Type
LP/NG
Type
Hot Surface Ignition
Amps AC
0.45 A
Includes
Adjustable Blower Relay, Diagnostic Indicator Flash Codes, Mounting Hole Template
Voltage
24
Operation Description
Automatic Gas Interrupted Ignition Control That Employs A Microprocessor To Continually Monitor, Analyze, And Control The Proper Operation Of The Gas Burner, Inducer, And Fan
Control Volts
24 V
Prepurge Time (Sec.)
30 sec
Igniter Warm-Up Time (Sec.)
17 sec
Retries
2
Item
Integrated Furnace Control
For Use With
Residential, Commercial Heating Equipment
Electrical Connections
1/4 in Quick Connect
Standards
cCSAus
Product Type
Integrated Furnace Control
Maximum Operating Temperature
175 Degrees F
Frequency
50/60 Hz
Board Type
Integrated Board
Lock Out Time
5 min
Number of Retries
2
Minimum Operating Temperature
-40 Degrees F
Replacement Type
Universal
Cool Delay to Fan Off
90 sec
Compatible with Brand
Amana, ICP, Trane, York
Heat Delay to Fan Off
180 sec
Igniter Warm Up Time
17 sec
Electrical Connection Type
1/4 in Quick-Connect
OEM Replacement Part Number
031-00662-000, 031-00662-700, 031-01250-000, 031-01250-700, 031-01266-000, 031-01266-700, 031-01284-000, 03101250000, 084141, 1010806, 102077-02, 102077-03, 102077-04, 102077-06, 102077-09, 102077-10, 102077-14, 10207704, 10207706, 10207710, 10207714, 10207719, 117284, 12L4201, 1380686, 1380698, 1380699, 14028, 14029, 14030, 14031, 194300330001, 30757, 350486, 3XA75, 4DG53, 4DG54, 4DG55, 4DG56, 50A50-110, 50A50-111, 50A50-112, 50A50-113, 50A50-130, 50A50-131, 50A50-142, 50A50-143, 50A50-205, 50A50-206, 50A50-207, 50A50-208, 50A50-209, 50A50-210, 50A50-215, 50A50-216, 50A50-229, 50A50-230, 50A50-240, 50A50-241, 50A50-245, 50A50-285, 50A50-286, 50A50-288, 50A50-295, 50A50-296, 50A50-298, 50A50-405, 50A50-406, 50A50-408, 50A50-438, 50A50-471, 50A50-472, 50A50-473, 50A50-474, 50A50-475, 50A50-571, 50A55-143, 50A55-241, 50A55-245, 50A55-250, 50A55-285, 50A55-286, 50A55-288, 50A55-3797, 50A55-438, 50A55-474, 50A55-476, 50A55-571, 50A55-843, 52537074000, 52537077000, 56L8501, 75671, 75672, 78712, 8068142, 8068561, 8068563, 83388, 99958174, 99958175, CNT02789, CNT02891, CNT03799, CNT1684, CNT1686, CNT1687, D330927P01, D330930P01, D330934P01, D340035P01, D340774P01, D341122P01, D341235P01, D341235P02, D341235P03, L38-798, L38-799, L38-800, L38-801, PCBBF117, X13120666010, X13130436-01, X13130436-02, X13130436-04, X13130436010, X13130436040, X13640678040, X13650597010, X4459, X445901
Low Voltage Protection
Low Voltage Protected
Ignition Cycle Time
100 seconds (HSI), 30 seconds (pre-purge), 15 seconds (post-purge)
Main Valve Current Output
1.5 A
Series
843
Thermostat Anticipator Setting
No Thermostat Anticipator
Input Voltage
24V AC
Control Voltage
24V AC
Cool Delay to Fan On
5 sec
Pre-Purge Time
30 sec
For Fuel Type
LP, Natural Gas
Flame Sensor Current Output
0.1 uA
Heat Delay to Fan On
45 sec
Automatic Reset Time
1 hr

Description

Integrated Furnace Control, Product Type Integrated Furnace Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time 5 min, Pre-Purge Time 30 sec, Number of Retries 2, Main Valve Current Output 1.5 A, Flame Sensor Current Output 0.1 uA, Ignition Cycle Time 100 seconds (HSI), 30 seconds (pre-purge), 15 seconds (post-purge), Automatic Reset Time 1 hr, Compatible with Brand Amana, ICP, Trane, York
