  6. Integrated Hot Surface Control, OEM Replacement, Input Voltage 25V AC 50/60 Hz

This item is Discontinued.

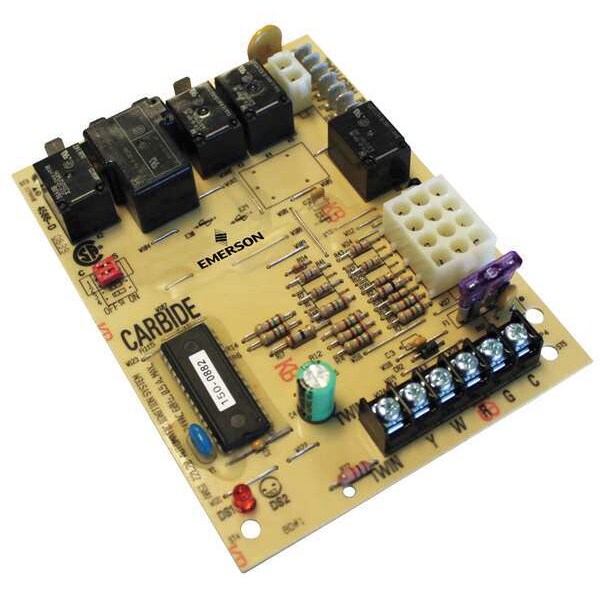

White-Rodgers Integrated Hot Surface Control, OEM Replacement, Input Voltage 25V AC 50/60 Hz 50A55-743

Integrated Hot Surface Control, OEM Replacement, Input Voltage 25V AC 50/60 Hz (Discontinued)

  • Mfr # 50A55-743
  • Zoro # G6152824
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50A55-743
Zoro #
G6152824
UPC #
786710547058
Country of Origin
Mexico

Dimensions

Overall Depth
1 1/4 in
Overall Width
4 3/8 in
Overall Height
5 7/8 in

Details

Item
Furnace Control Board
Replaces
Drop In Direct Replacement Ignition Control for Goodman 0130F00005, 0130F00005S, B1809926, B1809926S, PCBBF110, PCBBF110S, PCBBF112, PCBBF112S, PCBBF123, PCBBF123S, White-Rodgers 50T55-289 and 50A55-289
Type
OEM Replacement
Input Voltage
25V AC
Includes
Flash Code Diagnostics, Fused to Protect Low Voltage System Transformers, Twinning Connection
Control Volts
120 V
For Use With
0130F00005S, 50A55-289, 50A55-743, 50T55-289, B1809926, B1809926S, Mfr. No. 0130F00005, PCBBF110, PCBBF110S, PCBBF112, PCBBF112S, PCBBF123, PCBBF123S
Compatible Blower Motor Type
Permanent Split Capacitor
Heat Blower On Delay Setting
30 sec
Minimum Operating Temperature
-40 Degrees F
Furnace Control Functions
Cool, Heat
Maximum Relative Humidity
93 %
Number of Speed Taps
2
OEM Replacement Part Number
0130F00005, 0130F00005S, 50A55-289, 50T55-289, B1809926, B1809926S, PCBBF110, PCBBF110S, PCBBF112, PCBBF112S, PCBBF123, PCBBF123S
Board Type
Integrated
Product Type
Furnace Control Board
Maximum Operating Temperature
175 Degrees F
Standards
cCSAus
Control Mounting Type
Standoff
Ignition Type
Hot Surface Igniter
Cool Blower Off Delay Setting
45 sec
Replacement Type
OEM
Heat Blower Off Delay Setting
90 sec, 120 sec, 150 sec, 180 sec
Control Voltage
120V
Cool Blower On Delay Setting
5 sec
Connection Interface Type
Spade Terminal
Items Controlled
Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers
Terminal Designations
C, R, W, Y G
Compatible Inducer Motor Type
Permanent Split Capacitor
Number of Stages
1
Minimum Relative Humidity
5 %
Twinning Compatibility
Twinning Compatible
Compatible with Brand
Goodman
Igniter Voltage
120V AC

Description

Furnace Control Board, Replacement Type OEM, Board Type Integrated, Compatible with Brand Goodman, OEM Replacement Part Number 0130F00005, 0130F00005S, 50A55-289, 50T55-289, B1809926, B1809926S, PCBBF110, PCBBF110S, PCBBF112, PCBBF112S, PCBBF123, PCBBF123S, Control Voltage 120V, Input Voltage 25V AC, Items Controlled Air Cleaners, Blowers, Gas Valves, Humidifiers, Ignitors, Inducers, Product Type Furnace Control Board, Overall Height 5 7/8 in, Overall Width 4 3/8 in, Overall Depth 1 1/4 in
