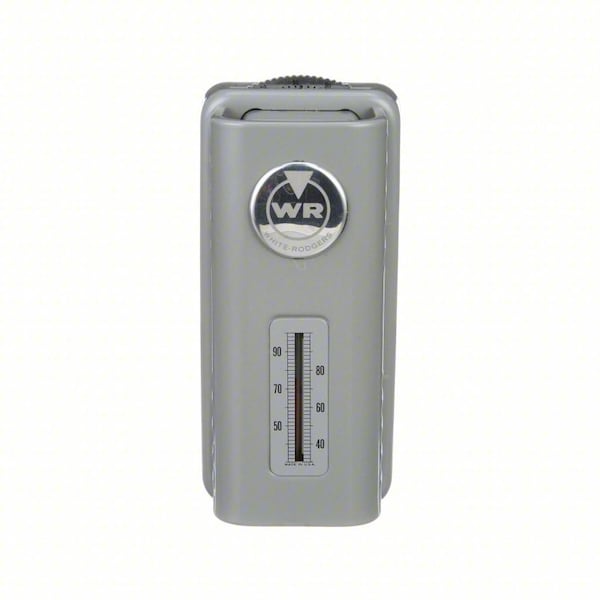

Line Voltage Mechanical Thermostat, Heat Only, 40 to 90F, Concealed Dial, 120 to 240V AC, 1H

  • Mfr # 01 52 010S1

  • Zoro # G1767972

product price:
$
178.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
01 52 010S1
Zoro #
G1767972
UPC #
786710001321
Country of Origin
Mexico

Dimensions

Overall Depth
2-1/4 in
Overall Height
4-1/2 in
Overall Width
4-1/2 in

Details

Compatible System Type
Electric Heating
Display Type
Analog
Application
Heat Only
Switch Action
Open on Rise
Switch Type
SPST
Number of Heating Stages
1
Temperature Control Range
40 to 90 Degrees F
Control Type
Concealed Dial
Voltage
120 to 240V AC
Mounting
Standard 2 x 4" Vertical Box or Flush to Wall
Item
Line Voltage Mechanical Thermostat
Inductive Amps @ 120V
14 A
Inductive Amps @ 240V
7 A
Number of Switches
1
Contact Rating Resistive @ 240V
20 A
Includes
Concealed Temperature Dial with Locking Case to Prevent Unauthorized Adjustment, Temperature Readout
Contact Rating Resistive @ 120V
25 A
Standards
CSA Certified, UL Listed
Locked Rotor Amps @ 120V
25 A
For Use With
Unit Heaters and Fan Coil Units
Locked Rotor Amps @ 240V
22 A
Thermostat Type
Line Voltage
Features
Lockable, Heavy Duty
Contact Rating
120V AC, 240V AC
Temperature Sensitivity
+/-2 Degrees F
Number of Poles
1
System Settings
On
Temperature Differential
3 Degrees F
Enclosure Color
Gray
Differential Type
Fixed
Full Load Amps @ 240V AC
7 A
Minimum Control Temperature
40 Degrees F
Housing Material
Steel
Temperature Readout
Yes
Maximum Control Temperature
90 Degrees F
Temperature Scale
Fahrenheit
Mounting Direction
Vertical
Includes Positive Off
No
Fan Settings
No Fan Setting
Stages
1H
Remote Control Functions
No Remote Control Included
Full Load Amps @ 120V AC
14 A
Programming Capability
Not Programmable
Housing Color
Gray

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 40 to 90 Degrees F, Thermostat Voltage 120 to 240V AC, Full Load Amps @ 120VAC 14 A, Full Load Amps @ 240VAC 7 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating, Remote Sensing Bulb Included No, Switch Action Open on Rise, Number of Switches 1, Differential 3 Degrees F, Height 4 1/2 in, Width 4 1/2 in, Depth 2 1/4 in, Temp. Sensitivity 2 Degrees F, Color Gray
