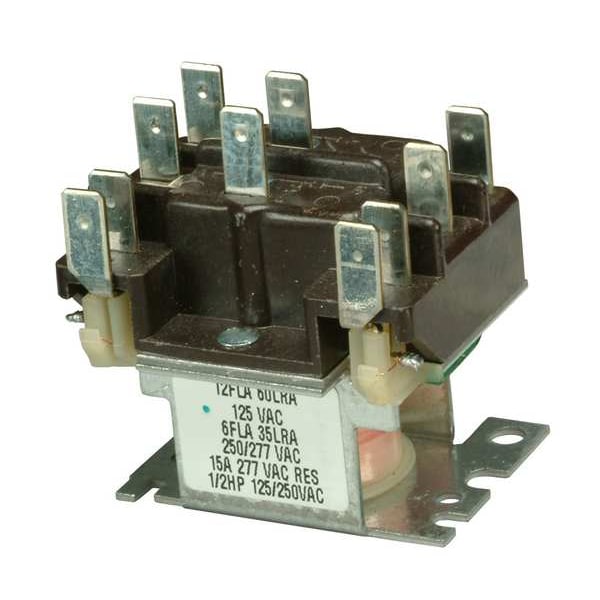

White-Rodgers Relay, Switching, 1/2 HP 90 341S1 - main

Relay, Switching, 1/2 HP

  • Mfr # 90 341S1

  • Zoro # G3319181

product price: $11.79
/ea

Key Features

Switch Type
DPDT
Coil Volts
115/120
HP
1/2 hp
Full Load Amps @ 120VAC
12 A
Type
AC Switching
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
90 341S1
Zoro #
G3319181
UPC #
786710070686
Country of Origin
China

Dimensions

Depth (In.)
1 7/8 in
Height (In.)
2 1/4 in
Width (In.)
2 1/8 in
Body Width
2.11 in
Body Height
1.86 in
Body Depth
2.08 in
Overall Depth
2.08 in

Details

Item
Magnetic Relay
Switch Type
DPDT
Coil Volts
115/120
HP
1/2 hp
Full Load Amps @ 120VAC
12 A
Type
AC Switching
Locked Rotor Amps @ 240V
35 A
Application
Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control
Mounting
Universal
Full Load Amps @ 277V
6 A
Locked Rotor Amps @ 120V
60 A
Resistive Amps @ 277V
15 A
Agency Compliance
UL
Full Load Amps @ 240VAC
6 A
For Use With
General Purpose Switching, HVAC Equipment, Vending Machines and Appliances
Mechanical Operating Durability
1,000,000
Operating Current
15 A at 277V AC (Resistive Load)
Maximum Operating Temperature
130 Degrees F
Power Consumption
9.5 VA
Horsepower @ 240V AC
1/2 hp
Coil Voltage
115/120V AC
Number of Pins
6
Input Voltage
115/120V AC
Electrical Operating Durability
100,000
Electrical Connection
Quick-Connect
Coil Resistance
420 ohm
Sealing
Semi-Enclosed
Current Rating
66 mA
Contact Rating (AC)
66 mA @ 125V
Horsepower @ 120V AC
1/2 hp
Standards
CSA File No. LR13360, UL E12139
Contact Form
DPDT
Minimum Operating Temperature
-40 Degrees F
Weight
6 oz
Frequency
50/60 Hz
Compatible with Manufacturer Model Number
90-112, 90-113, 90-118E, 90-119
Mounting Style
Universal
Compatible Grainger Part Number
1N182, 2E852, 3TZ56
Compatible Manufacturer Part Number
90-112, 90-113, 90-118E, 90-119
Compatible Manufacturer Model Number
90-112, 90-113, 90-118E, 90-119
Status Indicator
No Indicator
For Use With Mfr. Model Number
90-112, 90-113, 90-118E, 90-119
Compatible with Manufacturer Model No.
90-112, 90-113, 90-118E, 90-119
Compatible with Mfr. Model No.
90-112, 90-113, 90-118E, 90-119
For Use with Mfr Model Number
90-112, 90-113, 90-118E, 90-119
Compatible Pump Manufacturer Part Number
90-112, 90-113, 90-118E, 90-119
Compatible Mfr. Model Number
90-112, 90-113, 90-118E, 90-119

Description

Magnetic Relay, Coil Voltage 115/120V AC, Contact Form DPDT, Current Rating 66 mA, Electrical Connection Quick-Connect, Number of Pins 6, Sealing Semi-Enclosed, Status Indicator No Indicator, Contact Rating (AC) 66 mA @ 125V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Universal, Body Depth 2.08 in, Body Height 1.86 in, Body Width 2.11 in, Coil Resistance 420 ohm, Compatible with Grainger Part Number 1N182, 2E852, 3TZ56

Restrictions

Hazardous material
