This item is Discontinued.

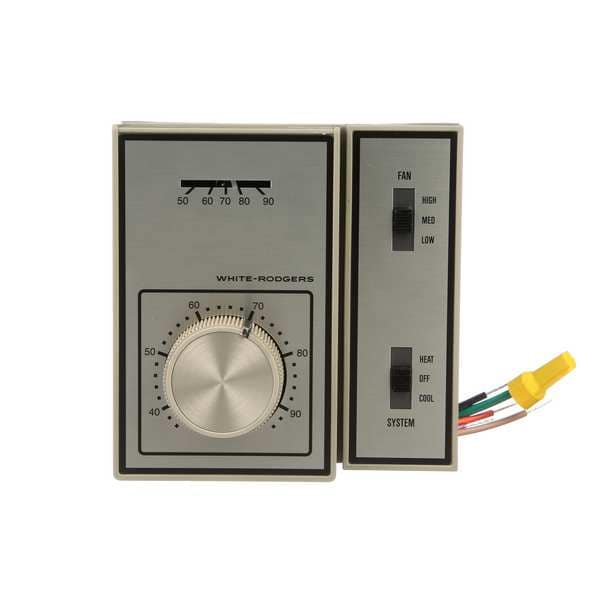

White-Rodgers Thermostat, Fan Coil 1A11-2

Thermostat, Fan Coil (Discontinued)

  • Mfr # 1A11-2
  • Zoro # G1476027
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1A11-2
Zoro #
G1476027
UPC #
786710423741
Country of Origin
Mexico

Dimensions

Depth (In.)
2 1/4 in
Width (In.)
4 1/2 in
Height (In.)
4 1/2 in
Overall Depth
2 1/4 in
Overall Width
4 1/2 in
Digit Size
Standard
Overall Height
4 1/2 in

Details

Item
Fan Coil Thermostat
Fan Coil Thermostat Type
Electric Line Voltage
Thermostat Switch Type
SPDT
Switch Action
Open/Close on Rise
Number of Switches
1
Thermostat Control Range
36 Degrees to 90 Degrees F
Differential (Deg. F)
+/-1.5
Voltage
120 to 277V AC
Locked Rotor Amps @ 120V
33 A
Color
Beige
Input Voltage
120 to 277
Thermostat Item
Fan Coil Thermostat
Rated For Pilot Duty
Yes 125 VA
Full Load Amps @ 120VAC
5.5
Number of Stages
1
Enclosure Type
Plastic
System Switching
Heat-Off-Cool
Application
Heat and Cool
Includes
Subbase
Sensor Type
Bi-Metal
Uses
Heat/Cool System
Full Load Amps @ 240VAC
2.75
Special Information
3 Speed Manual Fan
Thermostat Number of Speeds
3
Thermostat Number of Pipes
1
Mounting Position
Double Gang Box
Thermostat Heating/Cooling
Heating/Cooling
Locked Rotor Amps @ 240V
16.5 A
Fan Switching
Hi-Med-Low
Display
Analog
Temp. Settings per Day
1
Agency Compliance
UL, CSA
Switch Type
SPDT
Thermostat Type
Line Voltage
Shape
Rectangle
Electrical Connection Type
Hardwired
Standards
CSA Approved, UL Listed
Fan Settings
Hi-Med-Low
Mounting Direction/Shape
Vertical
Terminal Designations
GH, GM, GND, L1, Valve
Locked Rotor Amps @ 277V
13.8 A
Housing Color
Beige
Dual Transformer Compatible
Yes
Pilot Duty Rating
277V AC
System Settings
Cool-Heat-Off
System/Fan Settings
Cool-Heat-Off, Hi-Med-Low
Display Type
Analog
Humidification Control
No
Full Load Amps @ 277V AC
13.8 A
Temperature Scale
Celsius/Fahrenheit
Temperature Control Range
36 Degrees to 90 Degrees F
Key Pad Lockout
No
Full Load Amps @ 240V AC
2.8 A
Operating Temperature Range
36 Degrees to 90 Degrees F
Housing Material
Plastic
Full Load Amps @ 120V AC
5.5 A
Contact Rating
120 to 277V AC
Control Type
Exposed Dial
Compatible System Type
Fan Coil Unit
Differential Type
Fixed
Backlit Screen
No
Number of Zones
1
Temperature Readout
Yes
Minimum Control Temperature
36 Degrees F
Changeover Type
Manual
Includes Positive Off
No
Maximum Control Temperature
90 Degrees F
Mounting Direction
Vertical
Programming Capability
Not Programmable
Temperature settings per day
1
Temperature Limiting
Yes
Temperature Differential
1.5 Degrees F
Number of Pipes
1
Stages
1H/1C
Switch Type/Action
SPDT, Open/Close on Rise
Application/Stages
Heat and Cool, 1H/1C
Type
Electric Line Voltage

Description

Fan Coil Thermostat, Electric Line Voltage, Thermostat Switch Type SPDT, Switch Action Open/Close on Rise, Number of Switches 1, Thermostat Control Range 36 Degrees to 90 Degrees F, Differential (Deg. F) +/-1.5, Thermostat Heating/Cooling Heating/Cooling, Thermostat Number of Pipes 1, Thermostat Number of Speeds 3, Fan Switching Hi-Med-Low, System Switching Heat-Off-Cool, Sensor Type Bi-Metal, 4 1/2 in, Sensing Bulb Dia. (In.) -, 4 1/2 in, Sensing Bulb Length (In.) -, 2 1/4 in

Restrictions

This item has been restricted from sale in the following states: NH
