  11. CBN NEGATIVE INSERT, 0.375 in, TNGA, 0.031 in

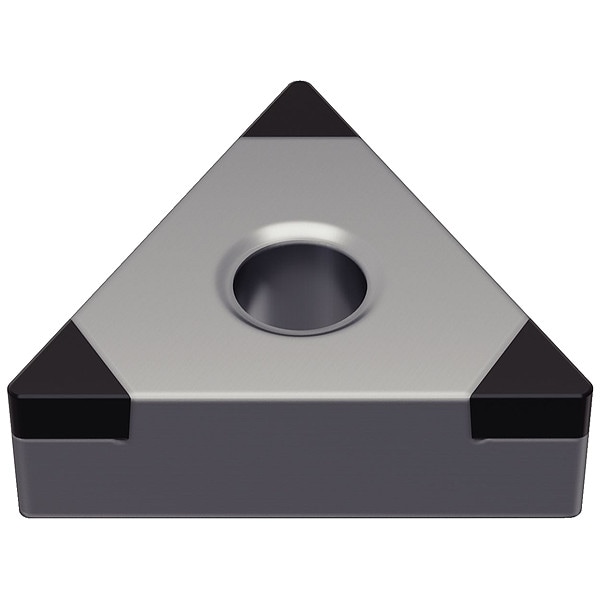

Widia CBN NEGATIVE INSERT, 0.375 in, TNGA, 0.031 in TNGA332S0425MT WBH20P - main

CBN NEGATIVE INSERT, 0.375 in, TNGA, 0.031 in

  • Mfr # TNGA332S0425MT WBH20P

  • Zoro # G005929150

product price: $157.99
/ea
Free Shipping & Returns

Key Features

Insert Style
TNGA
Inscribed Circle
0.375 in
Corner Radius
0.031 in
Rake
Negative
ISO Number
TNGA160408S01025MT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNGA332S0425MT WBH20P
Zoro #
G005929150
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
0.031 in
Cutting Edge Length
0.6496 in
Depth of Cut
0.1883 in
Thickness
0.1883 in
Through Hole Inside Dia.
0.15 in

Details

Item
CBN NEGATIVE INSERT
Insert Style
TNGA
Inscribed Circle
0.375 in
Rake
Negative
ISO Number
TNGA160408S01025MT
Cutting Direction
Neutral
Coating Process
PVD
Primary Material Application
Hardened Material
ANSI Code
TNGA332S0425MT
Finish - Machining
AlTiN
Cutting Application
Turning
Clearance Angle
0 Degrees
Standards
ANSI; ISO
Number of Cutting Edges
3
Material - Machining
CBN
Features
Better Wear Resistance, High Speed and Feed Capability, Long Tool Life, Multi-Layer Coating, Reduce Cycle Times
Measurement System
Decimal Inch
Material Grade - Machining
CBN
Included Angle
60 Degrees
Primary Material Application ISO Code
H
Manufacturer Grade
WBH20P
Shape
Triangle

Description

CBN NEGATIVE INSERT, Inscribed Circle 0.375 in, AlTiN
