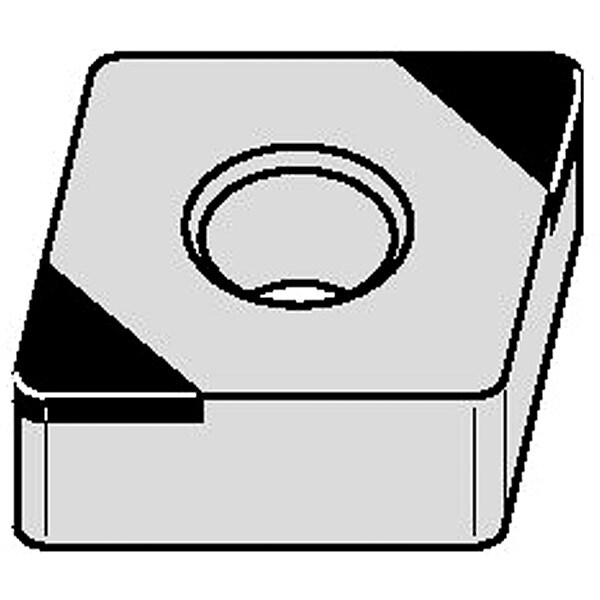

Widia CBN NEGATIVE INSERT, 4, CNGA, 2 CNGA432EMT WBH20P - main

CBN NEGATIVE INSERT, 4, CNGA, 2

  • Mfr # CNGA432EMT WBH20P

  • Zoro # G905905797

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Insert Style
CNGA
Inscribed Circle
4
Corner Radius
2
Rake
Negative
ISO Number
CNGA120408EMT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNGA432EMT WBH20P
Zoro #
G905905797
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
2
Thickness
3
Cutting Edge Length
0.5077 in
Through Hole Inside Dia.
0.2031 in
Depth of Cut
0.1875 in

Details

Item
CBN NEGATIVE INSERT
Insert Style
CNGA
Inscribed Circle
4
Rake
Negative
ISO Number
CNGA120408EMT
Cutting Direction
Neutral
Material Grade - Machining
CBN
Primary Material Application ISO Code
H
Primary Material Application
Hardened Steel
Measurement System
Decimal Inch
Manufacturer Grade
WBH20P
Number of Cutting Edges
2
General Shape
Rhomboid
Clearance Angle
0 Degrees
Included Angle
80 Degrees
Material - Machining
CBN
Shape
Rhomboid
Standards
ANSI, ISO
Features
Better Wear Resistance, High Speed and Feed Capability, Long Tool Life, Multi-Layer Coating, Reduce Cycle Times
ANSI Code
CNGA432EMT
Coolant Fed
Non-Coolant Through
Cutting Application
Turning
Finish - Machining
AlTiN
Coating Process
PVD
Insert Holding Type
2-Cylindrical Fixing Hole

Description

CBN NEGATIVE INSERT, Chip-Breaker Code Not Applicable, Inscribed Circle 0.5 in, AlTiN, ANSI Code CNGA432EMT, Clearance Angle 0 Degrees , Coating Process PVD
