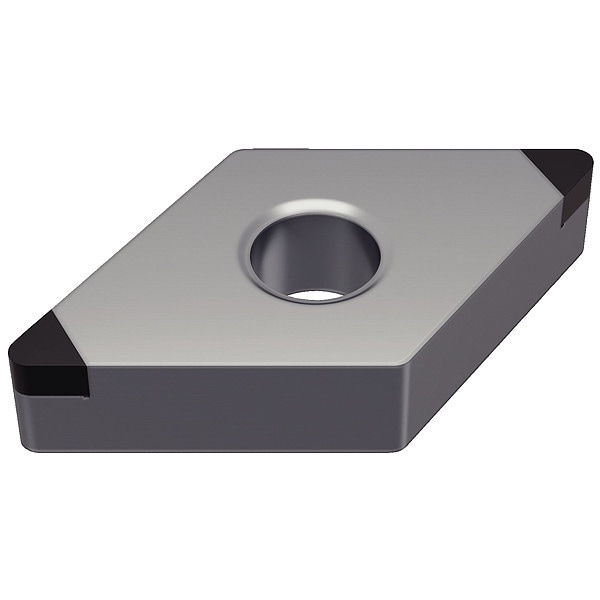

Widia CBN NEGATIVE INSERT, 4, DNGA, 3 DNGA433EMT WBH20P - main

CBN NEGATIVE INSERT, 4, DNGA, 3

  • Mfr # DNGA433EMT WBH20P

  • Zoro # G205906289

product price: $107.99
/ea
Free Shipping & Returns

Key Features

Insert Style
DNGA
Inscribed Circle
4
Corner Radius
3
Rake
Negative
ISO Number
DNGA150412EMT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNGA433EMT WBH20P
Zoro #
G205906289
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
3
Thickness
3
Depth of Cut
0.1875 in
Cutting Edge Length
0.6104 in
Through Hole Inside Dia.
0.2031 in

Details

Item
CBN NEGATIVE INSERT
Insert Style
DNGA
Inscribed Circle
4
Rake
Negative
ISO Number
DNGA150412EMT
Cutting Direction
Neutral
Primary Material Application
Hardened Steel
Finish - Machining
AlTiN
Insert Holding Type
2-Cylindrical Fixing Hole
Coating Process
PVD
Shape
Rhomboid
Features
Better Wear Resistance, High Speed and Feed Capability, Long Tool Life, Multi-Layer Coating, Reduce Cycle Times
Chip-Breaker Code
EMT
Manufacturer Grade
WBH20P
Clearance Angle
0 Degrees
Included Angle
55 Degrees
Material Grade - Machining
CBN
Primary Material Application ISO Code
H
Cutting Application
Turning
ANSI Code
DNGA433EMT
General Shape
Rhomboid
Material - Machining
CBN
Coolant Fed
Non-Coolant Through
Standards
ANSI, ISO
Number of Cutting Edges
2
Measurement System
Decimal Inch

Description

Negative Insert

Restrictions
