  6. CBN POSITIVE INSERT, Trigon, 0.375 in, TCGW, 60 Degrees, 0.031 in

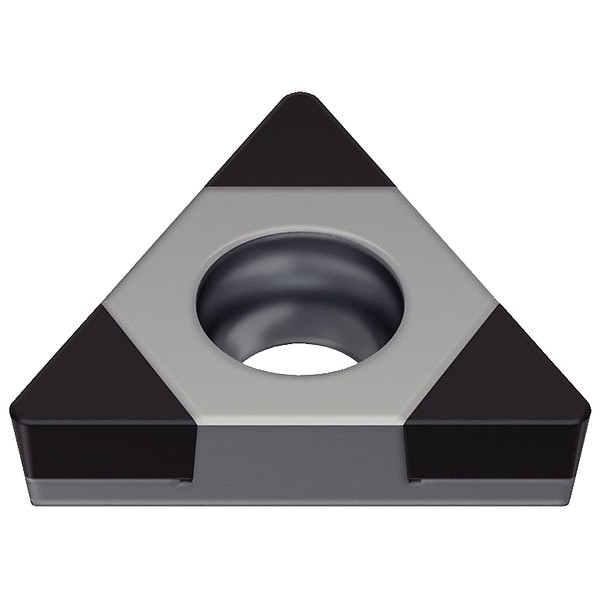

Widia CBN POSITIVE INSERT, Trigon, 0.375 in, TCGW, 60 Degrees, 0.031 in TCGW3252S0415M WBH20P - main
Shop WIDIA

CBN POSITIVE INSERT, Trigon, 0.375 in, TCGW, 60 Degrees, 0.031 in

  • Mfr # TCGW3252S0415M WBH20P

  • Zoro # G705972432

product price:  $153.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Trigon
Insert Style
TCGW
Inscribed Circle
0.375 in
Corner Radius
0.031 in
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCGW3252S0415M WBH20P
Zoro #
G705972432
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
0.031 in
Through Hole Inside Dia.
0.1732 in
Thickness
0.157 in
Cutting Edge Length
0.6496 in
Depth of Cut
0.157 in

Details

Item
CBN POSITIVE INSERT
Insert Shape
Trigon
Insert Style
TCGW
Inscribed Circle
0.375 in
Rake
Positive
ISO Number
TCGW16T308S01015MT
Cutting Direction
Neutral
Included Angle
60 Degrees
Primary Material Application
Hardened Material
Coating Process
PVD
Finish - Machining
AlTiN
Manufacturer Grade
WBH20P
Measurement System
Decimal Inch
Standards
ANSI; ISO
Clearance Angle
7 Degrees
Number of Cutting Edges
1
ANSI Code
TCGW3252S0415M
Features
Better Wear Resistance, High Speed and Feed Capability, Long Tool Life, Multi-Layer Coating, Reduce Cycle Times
Material Grade - Machining
CBN
Shape
Triangle
Primary Material Application ISO Code
H
Cutting Application
Turning
Material - Machining
CBN

Description

CBN POSITIVE INSERT, Inscribed Circle 0.375 in, AlTiN
