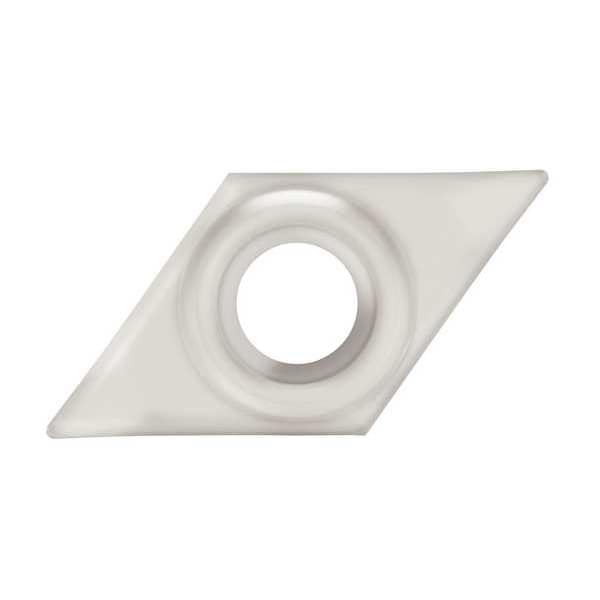

Widia Diamond Turning Insert, 2, DCGT, 1 DCGT2151AL WU10HT - main

Diamond Turning Insert, 2, DCGT, 1

  • Mfr # DCGT2151AL WU10HT

  • Zoro # G103457876

product price: $15.69
/ea
Sold in multiples of 5 for $78.45

Key Features

Insert Style
DCGT
Inscribed Circle
2
Chip-Breaker
Yes
Corner Radius
1
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCGT2151AL WU10HT
Zoro #
G103457876
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
1
Width
0.3052 in
Thickness
1.5
Cutting Edge Length
0.3052 in

Details

Item
Diamond Turning Insert
Insert Style
DCGT
Inscribed Circle
2
Chip-Breaker
Yes
Rake
Positive
ISO Number
DCGT070204AL
Cutting Direction
Neutral
Clearance Angle
7 Degrees
Features
Microfine Uncoated Carbide, Polished Rake Surface, Universal Geometry
Coolant Fed
Non-Coolant Through
Primary Material Application
Non-Ferrous
Cutting Application
Turning
Chip-Breaker Code
AL
Manufacturer Grade
WU10HT
Measurement System
Fractional Inch
Material Grade - Machining
WU10HT
General Shape
Parallelogram
Standards
40 CFR 122.21, 40 CFR 122.42, 40 CFR 302, 40 CFR 355, California Proposition 65 Listed, WHMIS Statement
Included Angle
55 Degrees
Material - Machining
Carbide
Cutting Edge
Sharp Edge
Finish - Machining
Bright (Uncoated)
Shape
Rhombic
Primary Material Application ISO Code
N
Number of Cutting Edges
2
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
ANSI Code
DCGT2151AL
Insert Holding Type
Countersink Hole
Wiper Insert
No

Description

Diamond Turning Insert, Chip-Breaker Code AL, Inscribed Circle 1/4 in, Bright (Uncoated), ANSI Code DCGT2151AL, Clearance Angle 7 Degrees
