  11. Diamond Turning Insert, 3, VBGT, 1

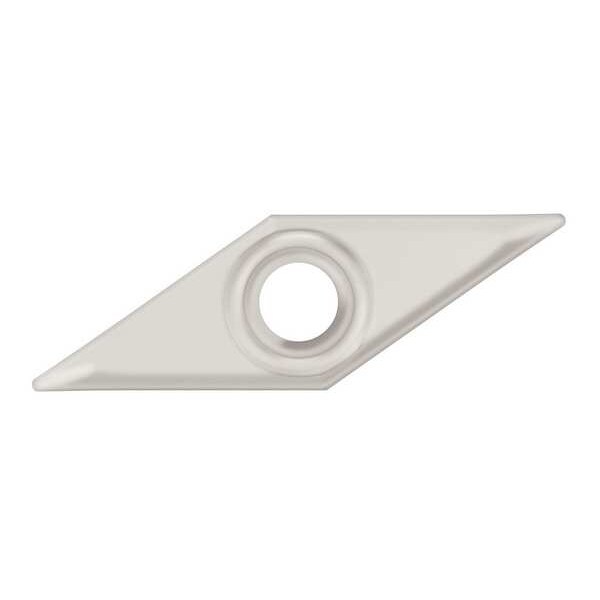

Widia Diamond Turning Insert, 3, VBGT, 1 VBGT331AL WU10HT - main

Diamond Turning Insert, 3, VBGT, 1

  • Mfr # VBGT331AL WU10HT

  • Zoro # G503457858

product price: $23.19
/ea
Sold in multiples of 5 for $115.95

Key Features

Insert Style
VBGT
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
1
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VBGT331AL WU10HT
Zoro #
G503457858
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
1
Width
0.6538 in
Cutting Edge Length
0.6538 in
Thickness
3

Details

Item
Diamond Turning Insert
Insert Style
VBGT
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Positive
ISO Number
VBGT160404AL
Cutting Direction
Neutral
Material Grade - Machining
WU10HT
Finish - Machining
Bright (Uncoated)
Included Angle
35 Degrees
Wiper Insert
No
Coolant Fed
Non-Coolant Through
Insert Holding Type
Countersink Hole
Shape
Rhombic
Manufacturer Grade
WU10HT
Clearance Angle
5 Degrees
Primary Material Application ISO Code
N
ANSI Code
VBGT331AL
General Shape
Parallelogram
Measurement System
Fractional Inch
Primary Material Application
Non-Ferrous
Cutting Edge
Sharp Edge
Cutting Application
Turning
Material - Machining
Carbide
Standards
40 CFR 122.21, 40 CFR 122.42, 40 CFR 302, 40 CFR 355, California Proposition 65 Listed, WHMIS Statement
Number of Cutting Edges
2
Chip-Breaker Code
AL
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Features
Microfine Uncoated Carbide, Polished Rake Surface, Universal Geometry

Description

Diamond Turning Insert, Chip-Breaker Code AL, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code VBGT331AL, Clearance Angle 5 Degrees

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
