  11. Diamond Turning Insert, Diamond, 2, CCMT, 2, Carbide

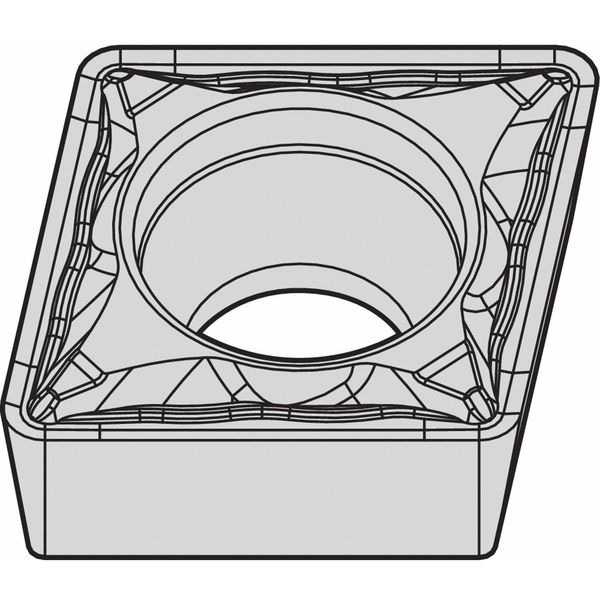

Widia Diamond Turning Insert, Diamond, 2, CCMT, 2, Carbide CCMT2152FP - main

Diamond Turning Insert, Diamond, 2, CCMT, 2, Carbide

  • Mfr # CCMT2152FP

  • Zoro # G2818039

product price: $15.59
/ea
Sold in multiples of 5 for $77.95

Key Features

Insert Shape
Diamond
Insert Style
CCMT
Inscribed Circle
2
Insert Size
2152
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCMT2152FP
Zoro #
G2818039
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
2152
Corner Radius
2
Insert Thickness
0.0938"
Nose Radius
0.031"
Mounting Hole Dia.
0.110"
Thickness
1.5
Cutting Edge Length
6.45mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCMT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
WS10PT
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
CCMT060208FP
Hardened (H) Compatibility
No
Mounting Style
Screw
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
Coating
AlTiSiN
Relief Angle
7 Degrees
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
No. of Edges
2
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
ANSI Number
CCMT2152FP
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Manufacturer Grade
WS10PT
Included Angle
80 Degrees
Clearance Angle
7 Degrees
Secondary Material Application ISO Code
K, N, P
Chip-Breaker Style
On One Side
Cutting Application
Turning
Shape
Rhombic
Primary Material Application ISO Code
M, S
Measurement System
Fractional Inch
ANSI Code
CCMT2152FP
Finish - Machining
AlTiSiN
Number of Cutting Edges
2
Chip-Breaker Code
FP
Primary Material Application
Nickel, Stainless Steel, Titanium
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material - Machining
Carbide
Material
Carbide
Style
CCMT
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code FP, Inscribed Circle 1/4 in, AlTiSiN, ANSI Code CCMT2152FP, Chip-Breaker Style On One Side, Clearance Angle 7 Degrees
