  11. Diamond Turning Insert, Diamond, 2, CPGW, 1, Carbide

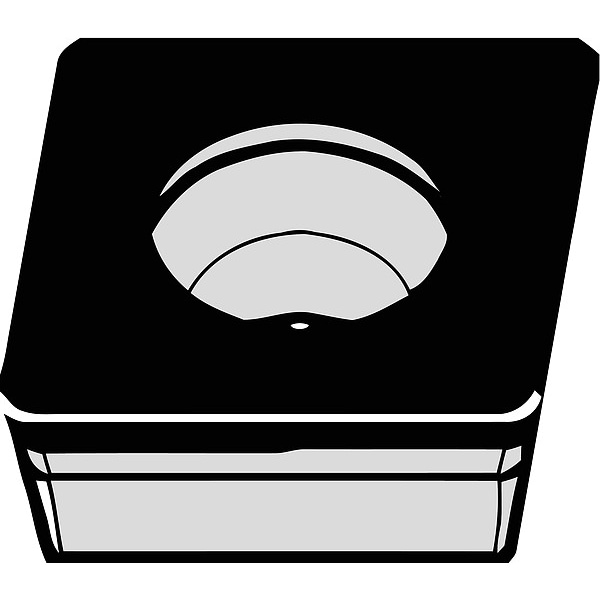

Widia Diamond Turning Insert, Diamond, 2, CPGW, 1, Carbide CPGW2151S0415C - main

Diamond Turning Insert, Diamond, 2, CPGW, 1, Carbide

  • Mfr # CPGW2151S0415C

  • Zoro # G3876343

product price: $123.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CPGW
Inscribed Circle
2
Insert Size
0.2500"
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPGW2151S0415C
Zoro #
G3876343
UPC #
4056544190765
Country of Origin
United States

Dimensions

Insert Size
0.2500"
Corner Radius
1
Mounting Hole Dia.
0.1100"
Insert Thickness
0.0938"
Cutting Edge Length
6.45mm
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CPGW
Inscribed Circle
2
Chip-Breaker
No
Grade
WBH30P
Insert Material
Carbide
ISO Number
CPGW060204S01015C
Mounting Style
Taper Screw
Coating
TiAlN
Style
CPGW
Cutting Direction
Neutral
Number of Cutting Edges
4
ANSI Code
CPGW2151S0415C
Manufacturer Grade
WBH30P
Cutting Application
Turning
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application ISO Code
H, K, S
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Titanium
Shape
Rhombic
Measurement System
Fractional Inch
Cutting Edge
Chamfered and Rounded
Material - Machining
Carbide
Clearance Angle
11 Degrees
Finish - Machining
AlTiN
Included Angle
80 Degrees
Material
Carbide
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 1/4 in, AlTiN, ANSI Code CPGW2151S0415C, Clearance Angle 11 Degrees
