  11. Diamond Turning Insert, Diamond, 2, VCGT, .5, Carbide

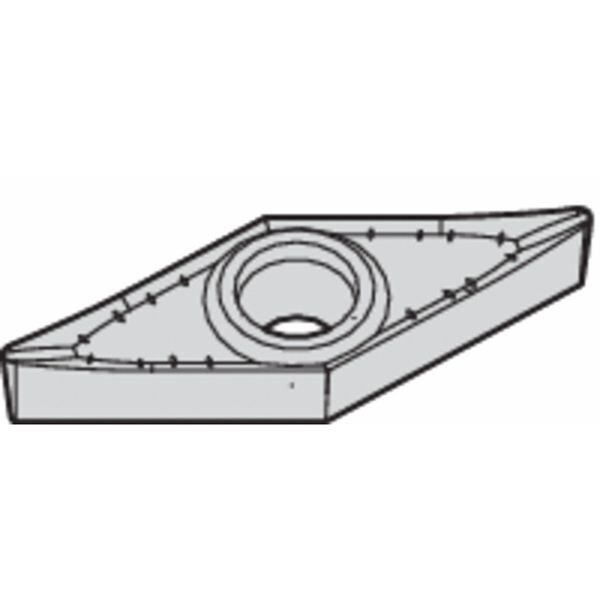

Widia Diamond Turning Insert, Diamond, 2, VCGT, .5, Carbide VCGT2205AL3 - main

Diamond Turning Insert, Diamond, 2, VCGT, .5, Carbide

  • Mfr # VCGT2205AL3

  • Zoro # G2908591

product price: $15.65
/ea
Sold in multiples of 10 for $156.50

Key Features

Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
2
Insert Size
2205
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCGT2205AL3
Zoro #
G2908591
UPC #
-
Country of Origin
Austria

Dimensions

Insert Size
2205
Corner Radius
.5
Mounting Hole Dia.
0.110"
Insert Thickness
0.1250"
Nose Radius
0.008"
Cutting Edge Length
11.07mm
Thickness
2

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
HWK15
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
VCGT110302AL3
Non Ferrous (N) Compatibility
Yes
Mounting Style
Screw
Cutting Direction
Neutral
Steel (P) Compatibility
No
Stainless (M) Compatibility
No
Relief Angle
7 Degrees
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Nonferrous (N)
Cast Iron (K) Compatibility
No
Hardened (H) Compatibility
No
ANSI Number
VCGT2205AL3
No. of Edges
2
Coating
Uncoated
Super Alloy (S) Compatibility
No
Measurement System
Fractional Inch
Included Angle
35 Degrees
Cutting Application
Turning
Chip-Breaker Style
On One Side
Material - Machining
Carbide
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
ANSI Code
VCGT2205AL3
Chip-Breaker Code
AL3
Shape
Rhombic
Primary Material Application ISO Code
N
Clearance Angle
7 Degrees
Manufacturer Grade
HWK15
Finish - Machining
Bright (Uncoated)
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Number of Cutting Edges
2
Material
Carbide
Style
VCGT
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code AL3, Inscribed Circle 1/4 in, Bright (Uncoated), ANSI Code VCGT2205AL3, Chip-Breaker Style On One Side, Clearance Angle 7 Degrees
