  11. Diamond Turning Insert, Diamond, 3, CPMT, 2, Carbide

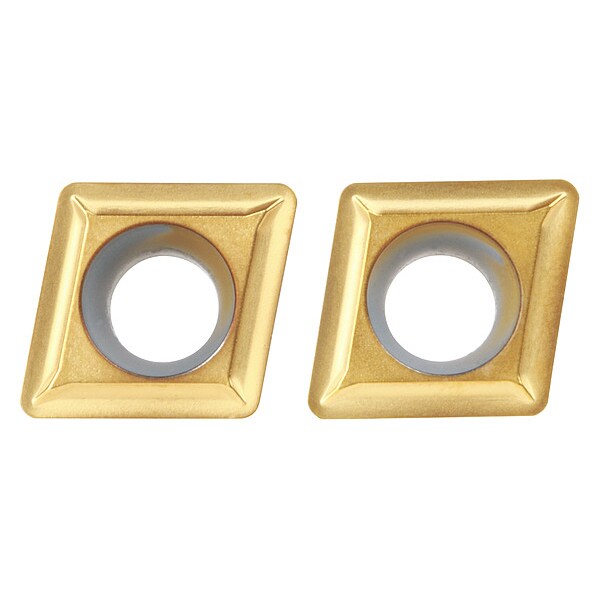

Widia Diamond Turning Insert, Diamond, 3, CPMT, 2, Carbide CPMT3252LF - main

Diamond Turning Insert, Diamond, 3, CPMT, 2, Carbide

  • Mfr # CPMT3252LF

  • Zoro # G3879685

product price: $11.49
/ea
Sold in multiples of 5 for $57.45

Key Features

Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
3
Insert Size
0.3750"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPMT3252LF
Zoro #
G3879685
UPC #
4021169388163
Country of Origin
United States

Dimensions

Insert Size
0.3750"
Corner Radius
2
Mounting Hole Dia.
0.1730"
Insert Thickness
0.1563"
Thickness
2.5
Cutting Edge Length
9.67mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
ISO Number
CPMT09T308LF
Mounting Style
Taper Screw
Cutting Direction
Neutral
Coating
TiN
Style
CPMT
Material - Machining
Carbide
Included Angle
80 Degrees
Number of Cutting Edges
4
Chip-Breaker Style
On One Side
Finish - Machining
TiN
Secondary Material Application
Cast Iron
Chip-Breaker Code
LF
ANSI Code
CPMT3252LF
Shape
Rhombic
Primary Material Application ISO Code
M, N, P, S
Clearance Angle
11 Degrees
Measurement System
Fractional Inch
Cutting Application
Turning
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Manufacturer Grade
CG5
Secondary Material Application ISO Code
K
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Material
Carbide
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code LF, Inscribed Circle 3/8 in, TiN, ANSI Code CPMT3252LF, Chip-Breaker Style On One Side, Clearance Angle 11 Degrees
