  11. Diamond Turning Insert, Diamond, 3, DCMX, Carbide

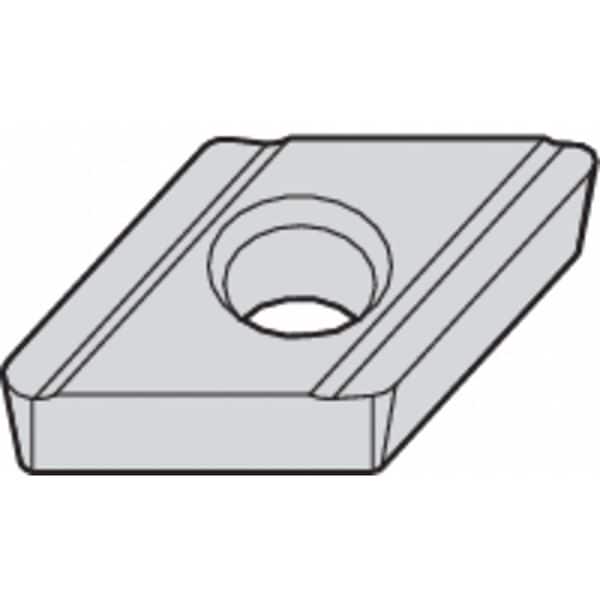

Widia Diamond Turning Insert, Diamond, 3, DCMX, Carbide DCMX32505R18 - main

Diamond Turning Insert, Diamond, 3, DCMX, Carbide

  • Mfr # DCMX32505R18

  • Zoro # G7677962

product price: $12.69
/ea
Sold in multiples of 5 for $63.45

Key Features

Insert Shape
Diamond
Insert Style
DCMX
Inscribed Circle
3
Insert Size
32505
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCMX32505R18
Zoro #
G7677962
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
32505
Mounting Hole Dia.
0.169"
Insert Thickness
0.1563"
Nose Radius
0.008"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCMX
Inscribed Circle
3
Chip-Breaker
Yes
Grade
THM
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
DCMX11T302R18
For Use With
Toolholders, Boring Bars
ANSI Number
DCMX32505R18
Mounting Style
Screw
Super Alloy (S) Compatibility
Yes
No. of Edges
2
Stainless (M) Compatibility
No
Steel (P) Compatibility
No
Hardened (H) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Hardened (H), Nonferrous (N), Super Alloy (S)
Coating
Uncoated
Non Ferrous (N) Compatibility
Yes
Relief Angle
7 Degrees
Cutting Direction
Right Hand
Cast Iron (K) Compatibility
Yes
Measurement System
Decimal Inch
Material - Machining
Carbide
Finish - Machining
Bright (Uncoated)
Material
Carbide
Style
DCMX
Cutting Application
Turning
ANSI Code
DCMX32505R18

Description

Diamond Turning Insert, Inscribed Circle 0.3750 in, Bright (Uncoated), ANSI Code DCMX32505R18
