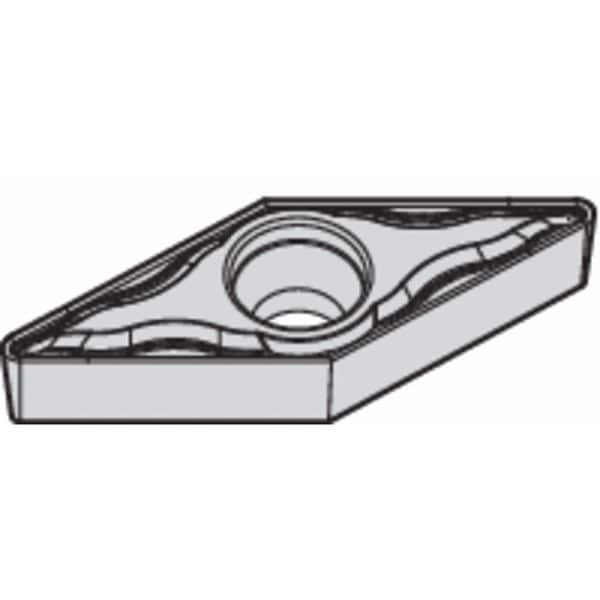

Widia Diamond Turning Insert, Diamond, 3, VBMT, 1, Carbide VBMT331FP - main

Diamond Turning Insert, Diamond, 3, VBMT, 1, Carbide

  • Mfr # VBMT331FP

  • Zoro # G2810418

product price: $12.19
/ea
Sold in multiples of 10 for $121.90

Key Features

Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VBMT331FP
Zoro #
G2810418
UPC #
-
Country of Origin
India

Dimensions

Insert Size
331
Corner Radius
1
Nose Radius
0.016"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.173"
Cutting Edge Length
16.00mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WP25CT
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
VBMT160404FP
Hardened (H) Compatibility
No
Mounting Style
Screw
Relief Angle
5 Degrees
Coating
Tin
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
ANSI Number
VBMT331FP
Workpiece Compatibility
Cast Iron (K), Steel (P)
Steel (P) Compatibility
Yes
No. of Edges
2
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Manufacturer Grade
WP25CT
Cutting Application
Turning
Finish - Machining
TiN
Number of Cutting Edges
2
Shape
Rhombic
Chip-Breaker Code
FP
Material - Machining
Carbide
ANSI Code
VBMT331FP
Primary Material Application ISO Code
P
Secondary Material Application ISO Code
K
Clearance Angle
5 Degrees
Measurement System
Fractional Inch
Chip-Breaker Style
On One Side
Secondary Material Application
Cast Iron
Primary Material Application
Steel
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Included Angle
35 Degrees
Material
Carbide
Style
VBMT
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code FP, Inscribed Circle 3/8 in, TiN, ANSI Code VBMT331FP, Chip-Breaker Style On One Side, Clearance Angle 5 Degrees
