  11. Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

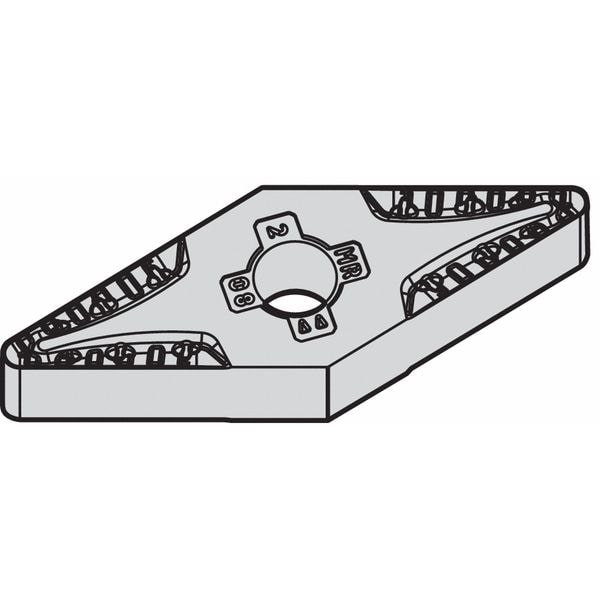

Widia Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide VNMG332MR - main

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

  • Mfr # VNMG332MR

  • Zoro # G2809690

product price: $11.89
/ea
Sold in multiples of 10 for $118.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG332MR
Zoro #
G2809690
UPC #
-
Country of Origin
India

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.031"
Mounting Hole Dia.
0.150"
Insert Thickness
0.1875"
Thickness
3
Cutting Edge Length
16.00mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WP35CT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
VNMG160408MR
For Use With
Toolholders, Boring Bars
ANSI Number
VNMG332MR
Coating
Tin
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Relief Angle
0 Degrees
No. of Edges
4
Cutting Direction
Neutral
Mounting Style
Clamp
Workpiece Compatibility
Stainless (M), Steel (P)
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
No
Primary Material Application ISO Code
P
Chip-Breaker Code
MR
Finish - Machining
TiN
Manufacturer Grade
WP35CT
Primary Material Application
Steel
Clearance Angle
0 Degrees
Secondary Material Application ISO Code
M
ANSI Code
VNMG332MR
Secondary Material Application
Stainless Steel
Shape
Rhombic
Number of Cutting Edges
4
Material - Machining
Carbide
Insert Holding Type
Straight Hole
Chip-Breaker Style
On Two Sides
Included Angle
35 Degrees
Cutting Application
Turning
Measurement System
Fractional Inch
Material
Carbide
Style
VNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code MR, Inscribed Circle 3/8 in, TiN, ANSI Code VNMG332MR, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
