  11. Diamond Turning Insert, Diamond, 4, CNGA, 2

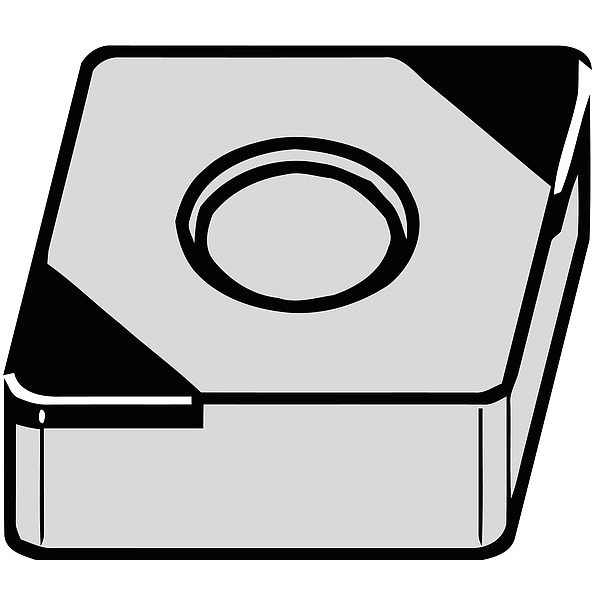

Widia Diamond Turning Insert, Diamond, 4, CNGA, 2 CNGA432S0425MT - main

Diamond Turning Insert, Diamond, 4, CNGA, 2

  • Mfr # CNGA432S0425MT

  • Zoro # G3930015

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Insert Size
0.5000"
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CNGA432S0425MT
Zoro #
G3930015
UPC #
4056544190321
Country of Origin
United States

Dimensions

Insert Size
0.5000"
Corner Radius
2
Insert Thickness
0.1883"
Cutting Edge Length
12.90mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Chip-Breaker
No
Grade
WBH30P
ISO Number
CNGA120408S01025MT
Mounting Style
Cylindrical Fixing Hole
Style
CNGA
Cutting Direction
Neutral
Included Angle
80 Degrees
Number of Cutting Edges
2
Finish - Machining
AlTiN
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Titanium
Measurement System
Fractional Inch
ANSI Code
CNGA432S0425MT
Primary Material Application ISO Code
H, K, S
Manufacturer Grade
WBH30P
Material - Machining
Carbide
Shape
Rhombic
Cutting Application
Turning
Clearance Angle
0 Degrees
Cutting Edge
Chamfered and Rounded
Insert Holding Type
Straight Hole
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, AlTiN, ANSI Code CNGA432S0425MT, Clearance Angle 0 Degrees
