  11. Diamond Turning Insert, Diamond, 4, CNGG, .2, Carbide

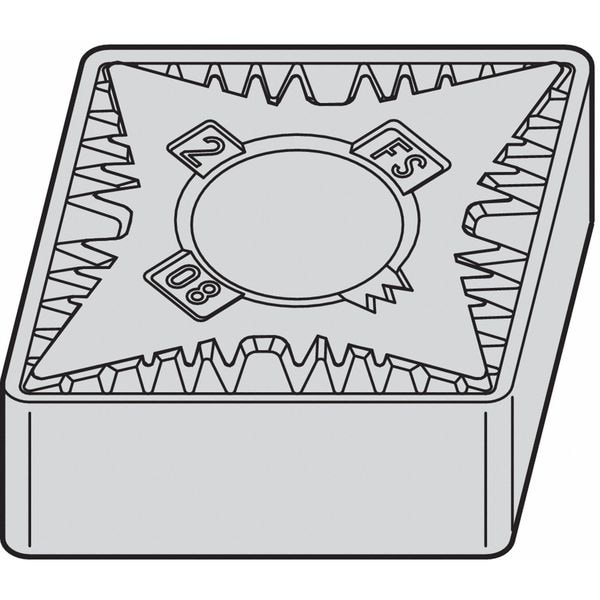

Widia Diamond Turning Insert, Diamond, 4, CNGG, .2, Carbide CNGG430FS - main

Diamond Turning Insert, Diamond, 4, CNGG, .2, Carbide

  • Mfr # CNGG430FS

  • Zoro # G2816602

product price: $18.19
/ea
Sold in multiples of 5 for $90.95

Key Features

Insert Shape
Diamond
Insert Style
CNGG
Inscribed Circle
4
Insert Size
430
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNGG430FS
Zoro #
G2816602
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
430
Corner Radius
.2
Nose Radius
0.004"
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Cutting Edge Length
12.90mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WS10PT
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
CNGG120401FS
Super Alloy (S) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Coating
AlTiSiN
Cast Iron (K) Compatibility
Yes
Mounting Style
Clamp
Steel (P) Compatibility
Yes
No. of Edges
4
Cutting Direction
Neutral
ANSI Number
CNGG430FS
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Stainless (M) Compatibility
Yes
Relief Angle
0 Degrees
For Use With
Toolholders, Boring Bars
Hardened (H) Compatibility
No
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
ANSI Code
CNGG430FS
Finish - Machining
AlTiSiN
Primary Material Application
Nickel, Stainless Steel, Titanium
Secondary Material Application ISO Code
K, N, P
Cutting Application
Turning
Included Angle
80 Degrees
Measurement System
Fractional Inch
Chip-Breaker Code
FS
Number of Cutting Edges
4
Material - Machining
Carbide
Primary Material Application ISO Code
M, S
Manufacturer Grade
WS10PT
Chip-Breaker Style
On Two Sides
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Shape
Rhombic
Material
Carbide
Style
CNGG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code FS, Inscribed Circle 1/2 in, AlTiSiN, ANSI Code CNGG430FS, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
