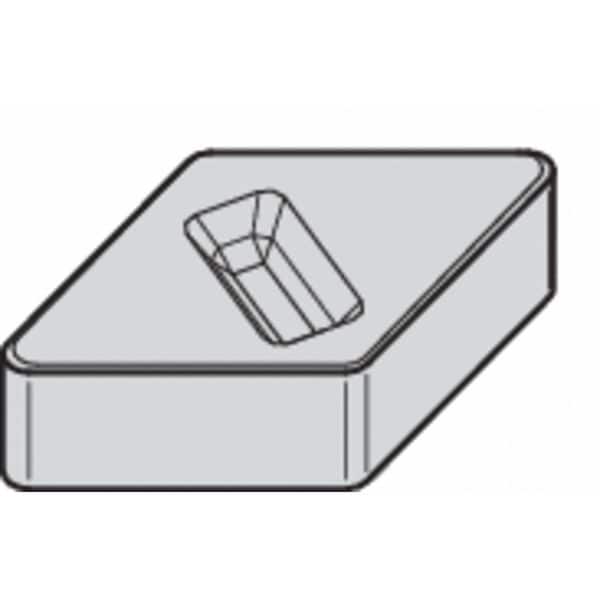

Widia Diamond Turning Insert, Diamond, 4, DNGX, 3, Ceramic DNGX453T0820 - main

Diamond Turning Insert, Diamond, 4, DNGX, 3, Ceramic

  • Mfr # DNGX453T0820

  • Zoro # G2908637

product price: $31.49
/ea
Sold in multiples of 10 for $314.90

Key Features

Insert Shape
Diamond
Insert Style
DNGX
Inscribed Circle
4
Insert Size
453
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNGX453T0820
Zoro #
G2908637
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
453
Corner Radius
3
Nose Radius
0.047"
Insert Thickness
0.3125"
Thickness
5
Cutting Edge Length
15.50mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNGX
Inscribed Circle
4
Chip-Breaker
No
Grade
CW5025
Insert Material
Ceramic
Insert Application
Medium
Rake
Negative
ISO Number
DNGX150712T02020
Steel (P) Compatibility
No
Coating
Uncoated
Cast Iron (K) Compatibility
Yes
ANSI Number
DNGX453T0820
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
For Use With
Toolholders, Boring Bars
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
Relief Angle
0 Degrees
Workpiece Compatibility
Cast Iron (K)
No. of Edges
4
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Clearance Angle
0 Degrees
Primary Material Application
Cast Iron
Manufacturer Grade
CW5025
Cutting Application
Turning
Insert Holding Type
Notch Clamping
Measurement System
Fractional Inch
Number of Cutting Edges
4
Shape
Rhombic
Material Grade - Machining
Silicon Nitride Ceramic
Primary Material Application ISO Code
K
Material - Machining
Ceramic
Included Angle
55 Degrees
Finish - Machining
Bright (Uncoated)
Cutting Edge
Chamfered
ANSI Code
DNGX453T0820
Material
Ceramic
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, Bright (Uncoated), ANSI Code DNGX453T0820, Clearance Angle 0 Degrees
